Ubiquiti UniFi Pro Max Switch 24 with 16 Gigabit 8x 2.5Gbps 2SFP+

Ubiquiti UniFi Pro Max Switch 24 with 16 Gigabit 8x 2.5Gbps 2SFP+

R 16,719.00 R 19,999.00

Choose option

Ubiquiti UniFi Pro Max Switch 24

with 16 Gigabit 8x 2.5Gbps 2SFP+

This 24-port Layer 3 Etherlighting switch delivers a 400W PoE budget, combining 16 Gigabit PoE ports (8× PoE++ and 8× PoE+) with 8 high-speed 2.5Gbps PoE++ ports and 2 10Gbps SFP+ uplink ports. It’s ideal for supporting WiFi 6 access points, cameras, and other PoE devices, while maintaining lightning-fast fibre uplinks to your core network. Ubiquiti UniFi USW-Pro-Max-24-PoE is an advanced Layer 3 managed switch engineered for high-performance enterprise deployments.

Manage and monitor the switch effortlessly using the UniFi Network Application, giving you complete visibility and control over your network performance.

Specifications

Dimensions

442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

Port Layout

1 GbE RJ45	16 (8 PoE+; 8 PoE++) (1G/100M/10M)
2.5 GbE RJ45	8 (All PoE++) (2.5G/1G/100M/10M)
10G SFP+	2 (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	400W
Redundancy	DC Power Backup
Layer 3	✓
Form Factor	Rack mount (1U)
Etherlighting	✓

Hardware

PoE Ports
PoE+	8
PoE++	16
Max. PoE Wattage per Port by PSE
PoE	15.4W
PoE+	32W
PoE++	64W
Max. Power Consumption	50W (Excluding PoE Output) 450W (Including PoE Output)
Power Method	(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 550W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	119 BTU/hr (Excluding PoE Output)
Weight	Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Etherlighting™
Ethernet	✓
SFP+	✓
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 06374-24-08356

Performance

Switching Capacity	112 Gbps
Total Non-Blocking Throughput	56 Gbps
Forwarding Rate	83 Mpps
Supported VLANs	1,000
L3 Table Size
ARP Entries	6,000
IPv4 Static Routes	256
Packet Buffer Size	1.5 MB
Access Lists
IPv4	128
MAC	128

Layer 2 Features

LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
ARP Entries	✓
IPv4 Static Routes	✓
Packet Buffer Size	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓

Software

Application Requirements
UniFi Network	Version 8.0.24 and later

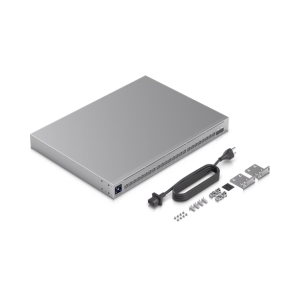

Package Contents

1x	Ubiquiti UniFi Pro Max Switch 24 with 16 Gigabit 8x 2.5Gbps 2SFP+ \| USW-Pro-Max-24
