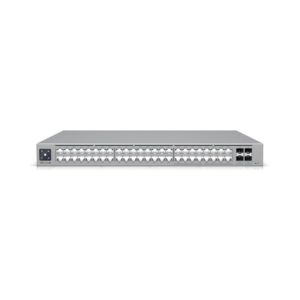

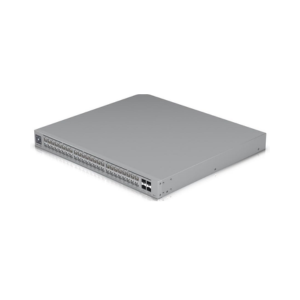

Ubiquiti Pro Max 48 port PoE GbE Managed Switch with 4x SFP+ Ports

Ubiquiti Pro Max 48 port PoE GbE Managed Switch with 4x SFP+ Ports

R 26,569.00 R 39,999.00

Choose option

Ubiquiti Pro Max 48 port PoE GbE Managed Switch with 4x SFP+ Ports

Ubiquiti's USW-PRO-MAX48P is a 48 port, fully managed, Layer 3 Etherlighting switch. The unit features a 720W PoE budget with 32 Gigabit PoE Ports (24x PoE+ and 8x PoE++), 16x 2.5Gbps PoE ports (8x PoE+ and 8x PoE++) and 4x SFP+ uplink Ports. This configuration makes provision for 2.5Gbps PoE links to your WiFi 6 devices as well as 10Gbps fibre uplinks to your network.

Features

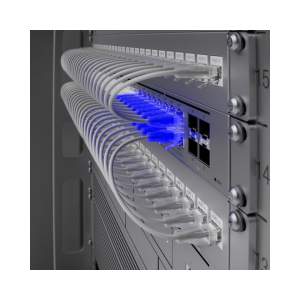

Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*

16x 2.5 GbE ports including 8x PoE+ and 8x PoE++

32x GbE ports including 24x PoE+ and 8x PoE++

4x 10G SFP+ ports

DC power backup ready

720W total PoE availability

Managed with UniFi Network 8.0.24 and later

Specifications

Dimensions

442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

Port Layout

1 GbE RJ45	32 (24 PoE+; 8 PoE++) (1G/100M/10M)
2.5 GbE RJ45	16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M)
10G SFP+	4 (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	720W
Redundancy	DC Power Backup
Layer 3	✓

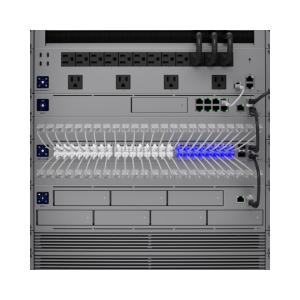

Form Factor	Rack mount (1U)
Etherlighting	✓

Hardware

PoE Ports
PoE+	32
PoE++	16
Max. PoE Wattage per Port by PSE
PoE	15.4W
PoE+	32W
PoE++	64W
Max. Power Consumption	100W (Excluding PoE Output) 820W (Including PoE Output)
Power Method	(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method	AC input
Power Supply	AC/DC, internal, 550W
Supported Voltage Range	100–240V AC
Management	Ethernet AR
Heat Dissipation	341.2 BTU/hr (Excluding PoE Output)
Weight	Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm (15.7-47.2")

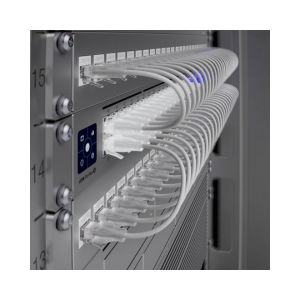

LCM Display	1.3" touchscreen
ESD Protection	Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Etherlighting™
Ethernet	✓
SFP+	✓
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 06374-24-08356

Performance

Switching Capacity	224 Gbps
Total Non-Blocking Throughput	112 Gbps
Forwarding Rate	167 Mpps
Supported VLANs	1,000
MAC Address Table Size	32,000
L3 Table Size
ARP Entries	12,000
IPv4 Routes	12,000
IPv4 Static Routes	256
Packet Buffer Size	2 MB
Access Lists
IPv4	128
MAC	128

Layer 3 Features

DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓

Layer 2 Features

LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)	✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)	✓
ARP Entries	✓
IPv4 Static Routes	✓
Packet Buffer Size	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Virtual Network Override	✓

Software

Application Requirements
UniFi Network	Version 8.0.24 and later

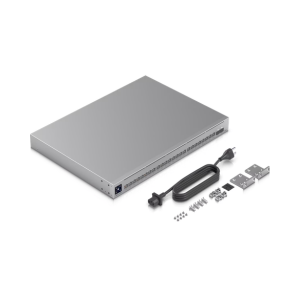

Package Contents

1x	Ubiquiti Pro Max 48 port PoE GbE Managed Switch with 4x SFP+ Ports
