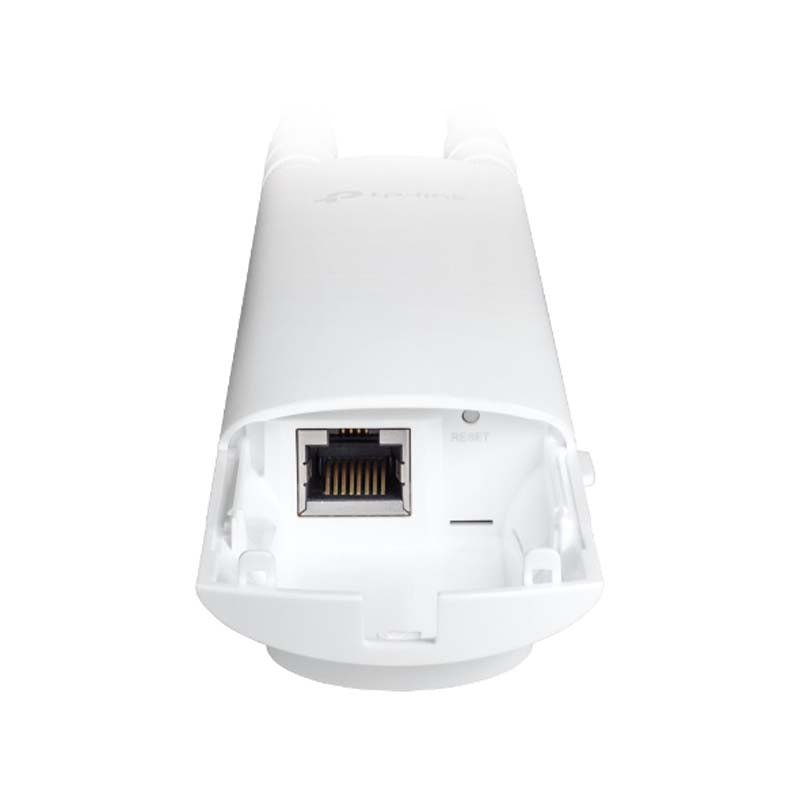

TP-Link AC1200 Dual Band Outdoor Access Point - White

SKU: EAP225-OUTDOOR
Barcode: 6935364083571
R 1,299.00 R 2,399.00
-R 1,100.00
Split into interest-free payments with

Wi-Fi That Goes the Distance With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m at 2.4GHz and 300m at 5GHz in outdoor settings.

Online Only

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 10 and June 14. !

Free Collection Within Gauteng

Free 7 Day Return Policy

Limited Warranty Available

Get It Now, Pay Later

* 7-Day Returns

Change-of-mind returns are accepted within 7 days on eligible products that remain unopened, unused, and in resellable condition. Opened or activated devices and accessories may not qualify for return. ⁠View our full Returns Policy.
TP-Link AC1200 Dual Band Outdoor Access Point - White
R 1,299.00 R 2,399.00
R 1,299.00 R 2,399.00
Choose option
Color: White
  • White

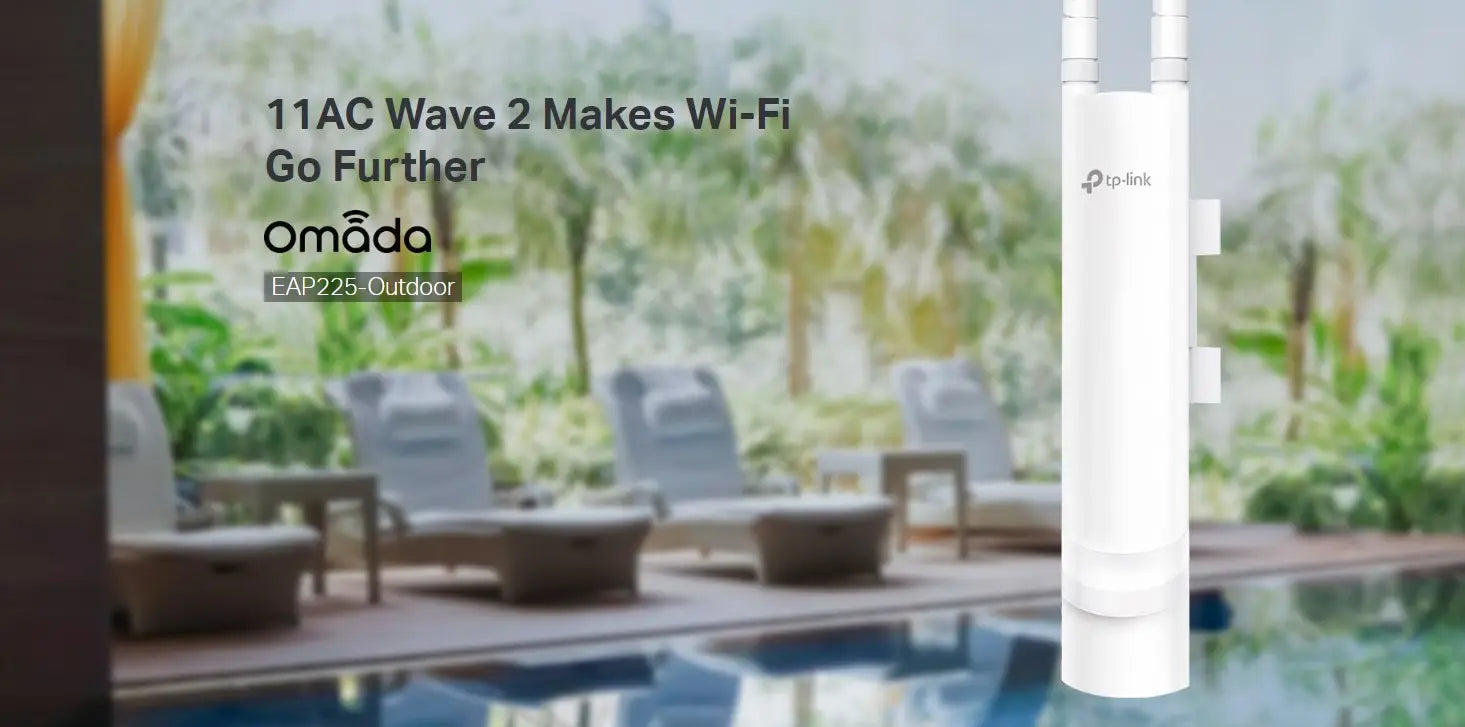

TP-Link AC1200 Dual Band Outdoor Access Point

Product Image Product Image

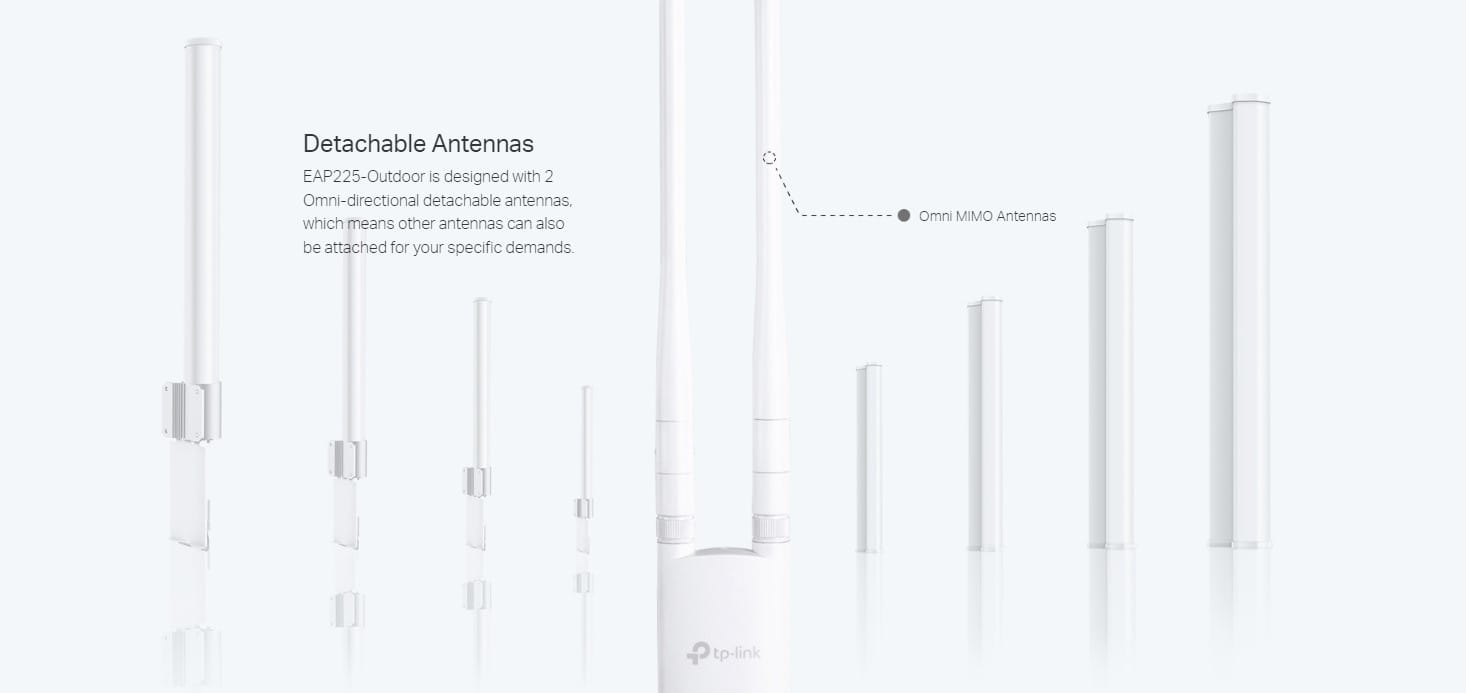

Excellent Hardware Designs

With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Product Image Product Image Product Image Product Image

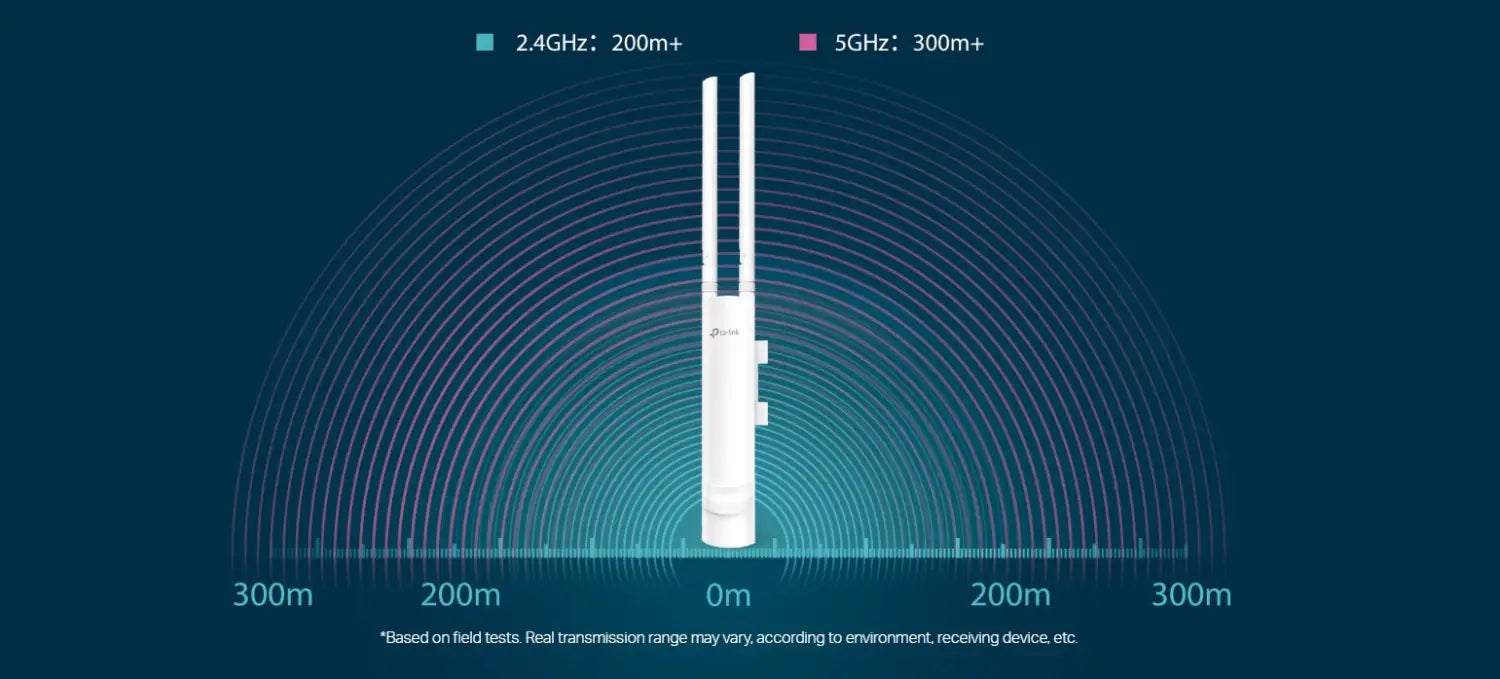

Wi-Fi That Goes the Distance

With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m at 2.4GHz and 300m at 5GHz in outdoor settings.

Product Image

Specially Designed Weatherproof Enclosure for Outdoor Environment

Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Product Image

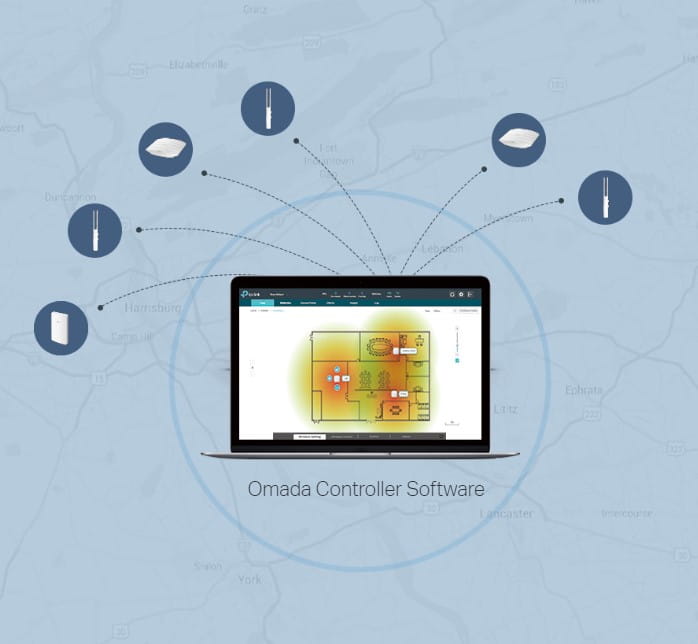

Efficient Centralized Network Management

With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.

Product Image

Specifications

HARDWARE FEATURES

Interface

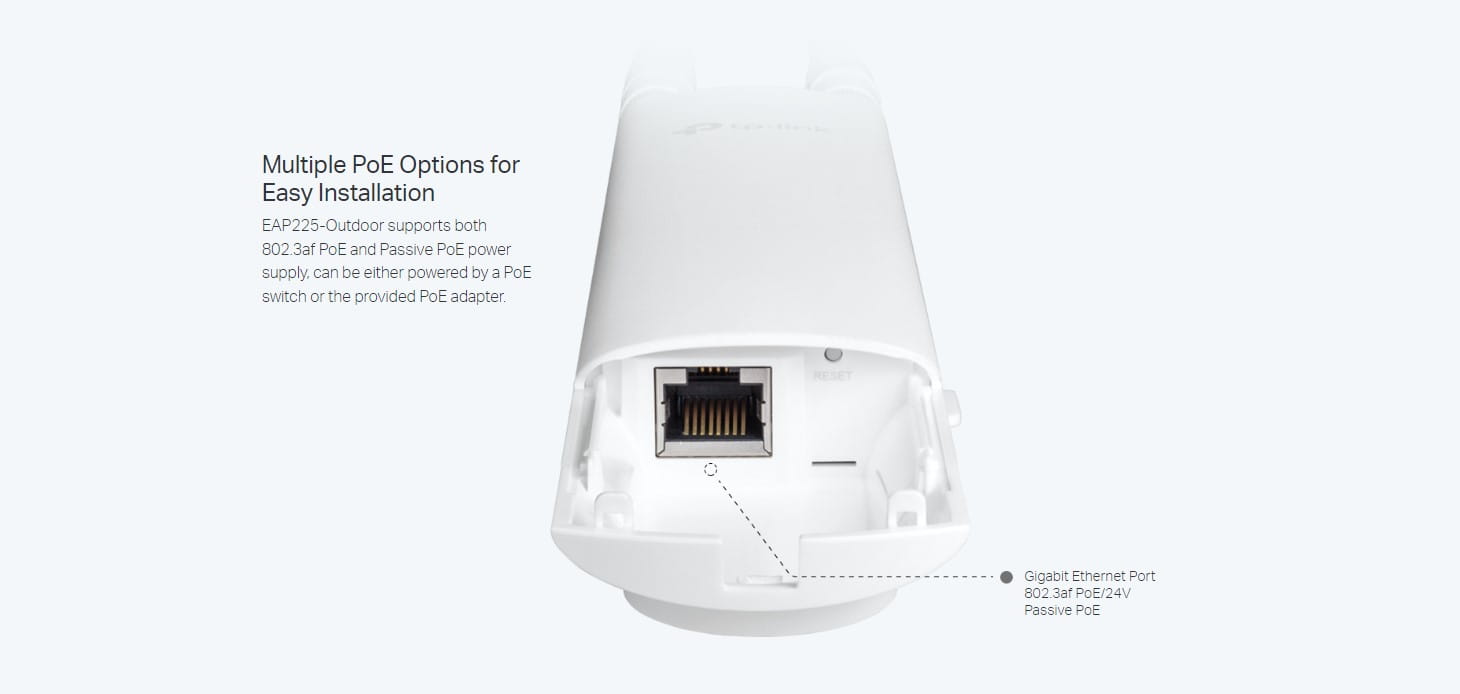

 Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)

Button

 Reset

Power Supply

 802.3af/A PoE
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption

 10.5W

Dimensions ( W x D x H )

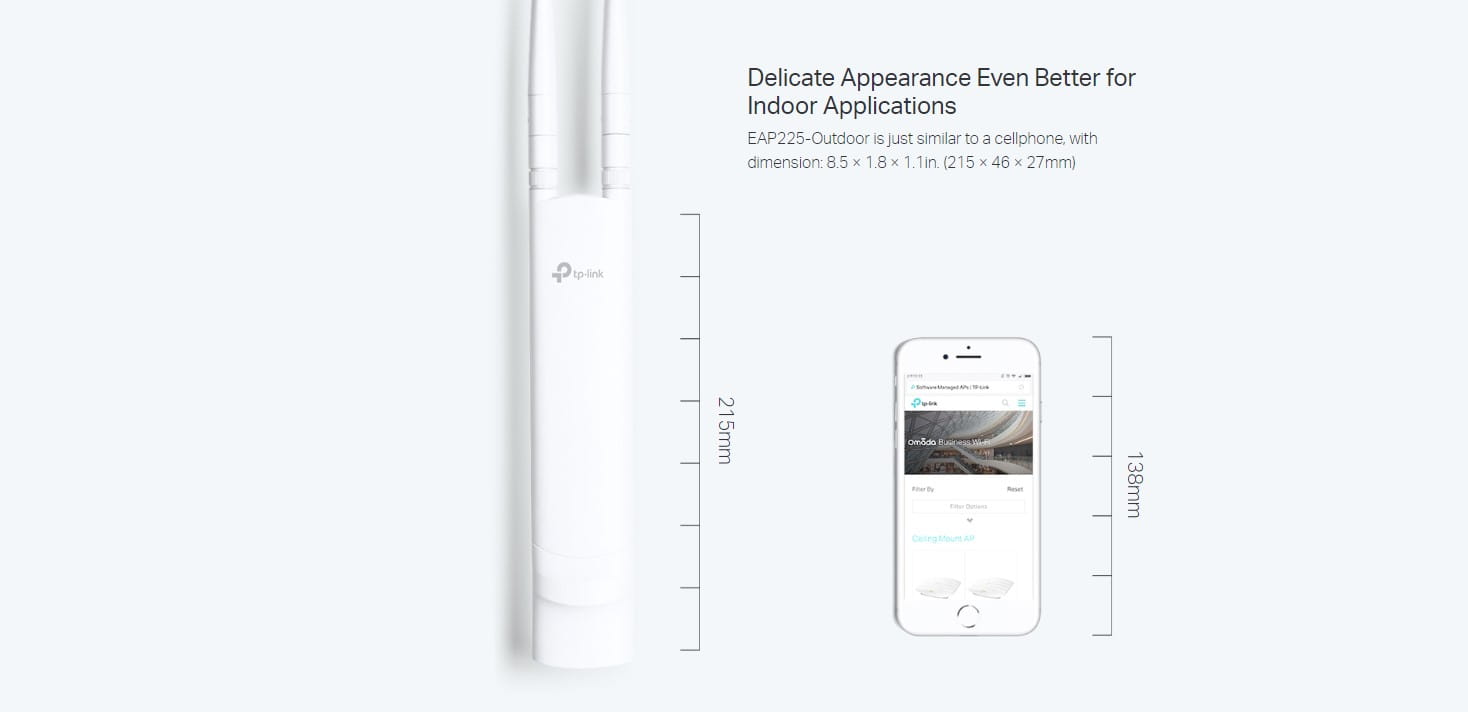

 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)

Antenna

 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi

Weatherproof Enclosure

 IP65

Mounting

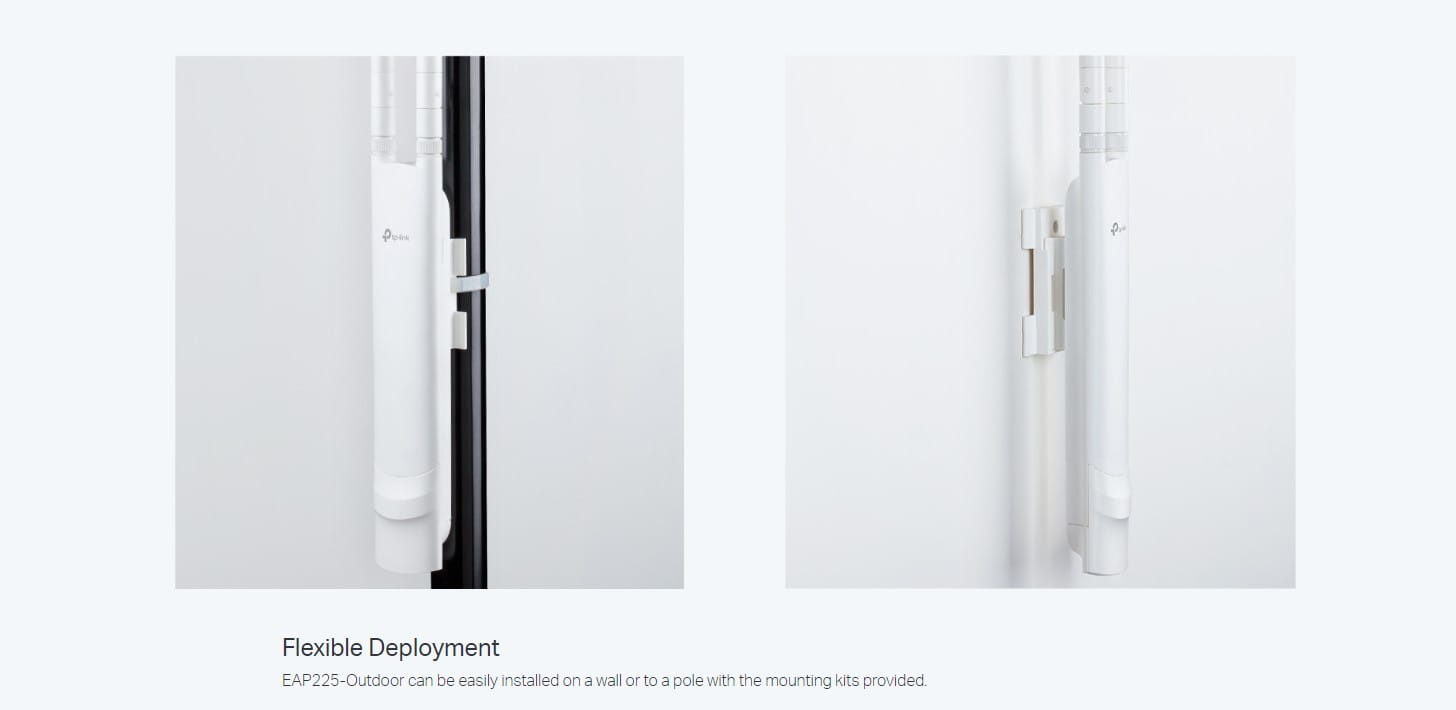

 Pole/Wall Mounting (Kits included)

Hardware Watch Dog

 Yes

WIRELESS FEATURES

Wireless Standards

 IEEE 802.11a/b/g/n/ac

Frequency

 2.4GHz, 5GHz

Signal Rate

 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions

 Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)

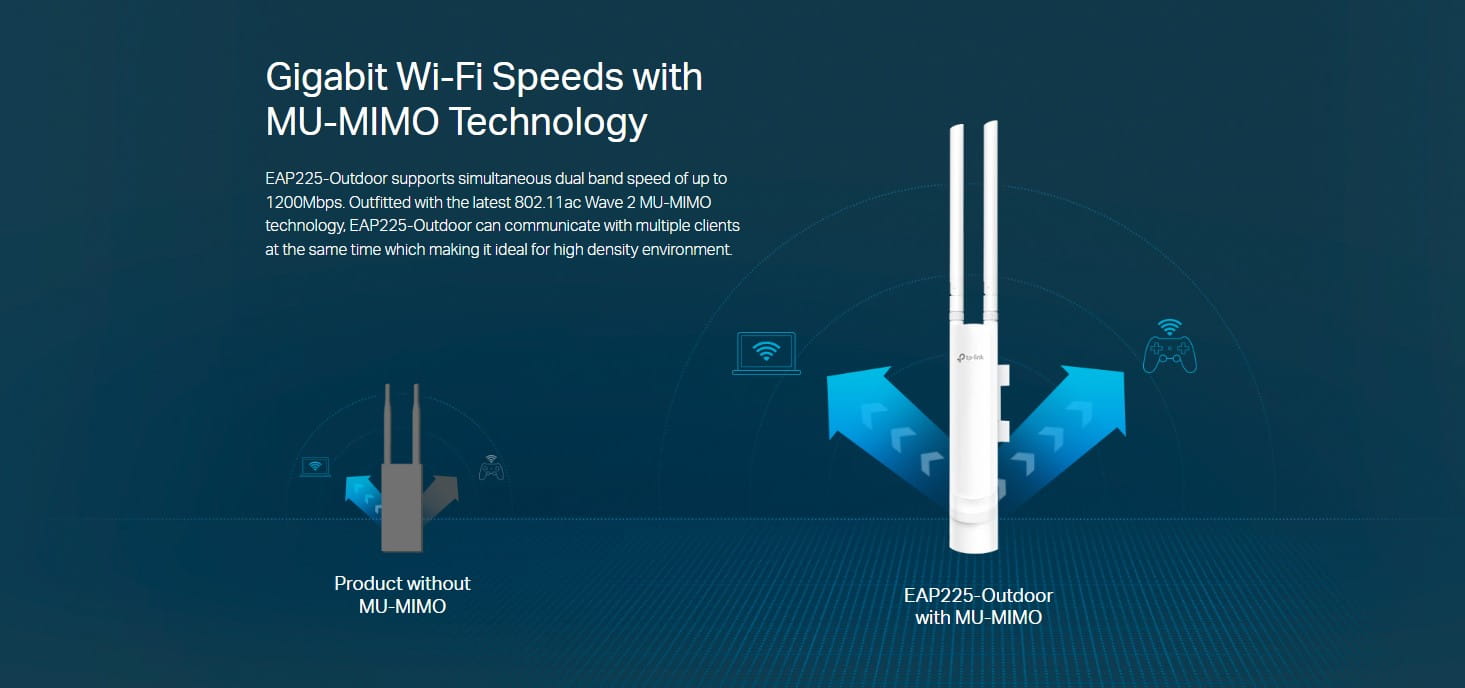

MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security

 Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support

Transmission Power

 • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)

MANAGEMENT
Omada App Yes
Omada Cloud Controller Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Omada Controller Software Yes
Cloud Access Yes
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification CE、FCC、RoHS
Package Contents AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
EAP225-Outdoor
Power Adapter
Mounting Kits
Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment Operating Temperature: -30℃~70℃ (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
