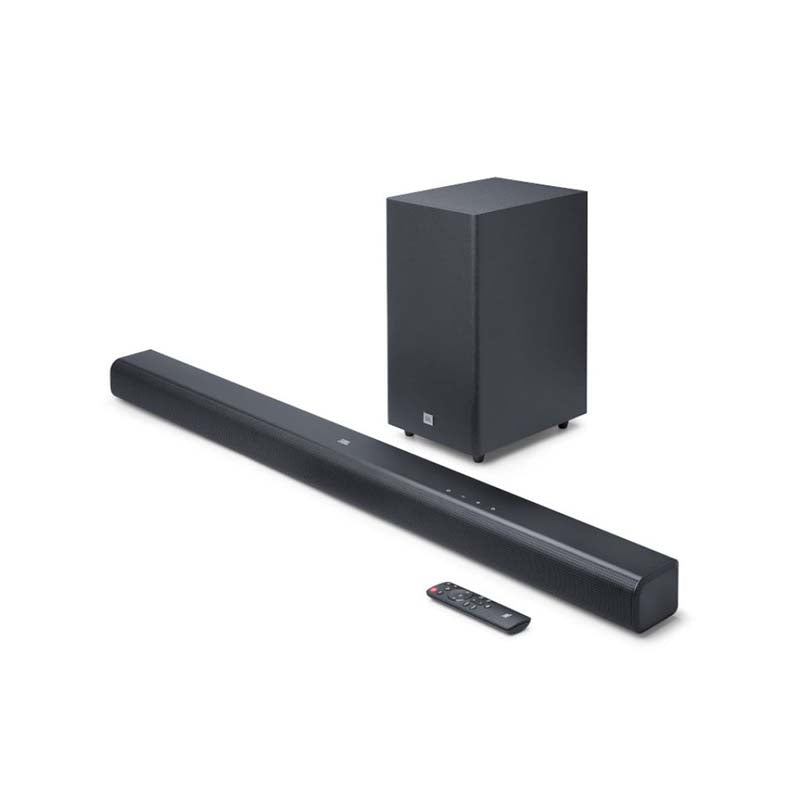

JBL Cinema SB580 3.1 Channel Soundbar with Virtual Dolby Atmos and Wireless Subwoofer
JBL Cinema SB580 3.1 Channel Soundbar with Virtual Dolby Atmos and Wireless Subwoofer
Dedicated center channel driver provides superior voice clarity
A dedicated center channel delivers film and TV dialogue with amazing clarity. You'll never ask "What did they just say?" again.
440W of powerful JBL sound
Clear, powerful sound for the ultimate immersive home theater experience.
Wireless subwoofer for extra deep bass
Experience deep, thrilling bass from a 6.5" subwoofer without the clutter of extra cables.
JBL
JBL Cinema SB580 3.1 Channel Soundbar with Virtual Dolby Atmos and Wireless Subwoofer
In Stock
Estimated delivery between June 10 and June 14.
Get It Now, Pay Later
* 7-Day Returns
Change-of-mind returns are accepted within 7 days on eligible products that remain unopened, unused, and in resellable condition. Opened or activated devices and accessories may not qualify for return. View our full Returns Policy.
JBL Cinema SB580 3.1 Channel Soundbar with Virtual Dolby Atmos and Wireless Subwoofer
Dedicated center channel driver provides superior voice clarity
A dedicated center channel delivers film and TV dialogue with amazing clarity. You'll never ask "What did they just say?" again.
440W of powerful JBL sound
Clear, powerful sound for the ultimate immersive home theater experience.
Wireless subwoofer for extra deep bass
Experience deep, thrilling bass from a 6.5" subwoofer without the clutter of extra cables.
Specifications
Specifications
Model
CINEMA SB580
Sound system
3.1 channel
Power supply
100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%)
440W
Soundbar output power (Max @THD 1%)
240W
Subwoofer output power (Max. @THD 1%)
200W
Soundbar transducer
3x (45 x 100) mm racetrack drivers + 3x 13mm tweeters

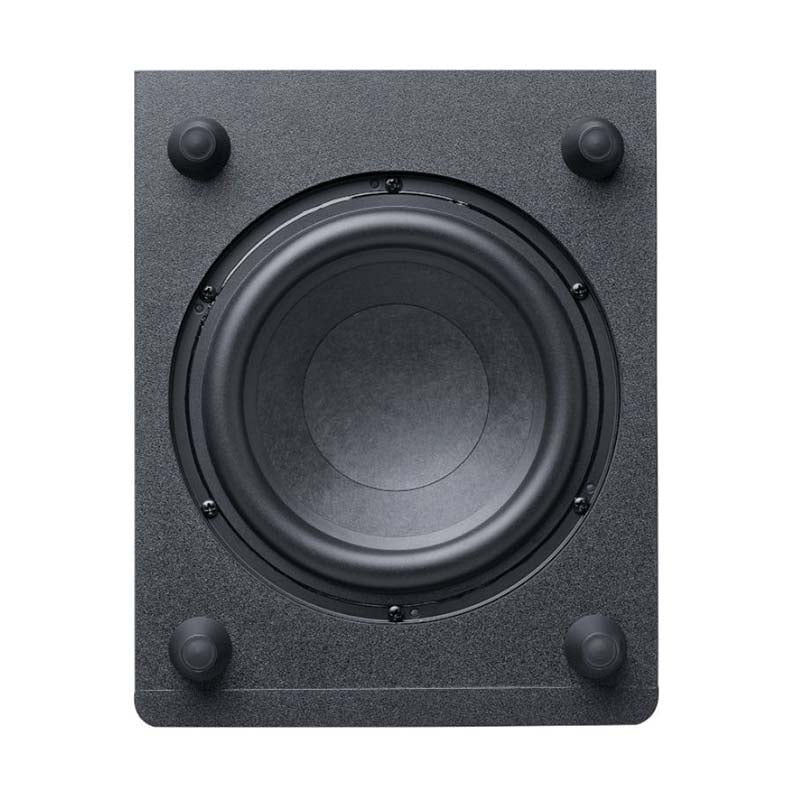

Subwoofer transducer
6.5” (165 mm), wireless subwoofer
Standby power
< 0.5 W
Operating temperature
0°C - 45 °C
Audio Specifications
Frequency response
40Hz-20kHz (-10dB)
Audio inputs
1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Soundbar dimensions (W x H x D)
950 x 64 x 80 mm / 37.4’’ x 2.5’’ x 3.1’’
Subwoofer dimensions (W x H x D)
200 x 404 x 250 mm / 7.9" x 15.9" x 9.9"
Soundbar weight
2.6kg / 5.7 lbs
Subwoofer weight
5.7 kg / 12.6 lbs
Packaging dimensions (W x H x D)
1025 x 235 x 397 mm / 40.4" x 9.3" x 15.6"
Packaging Weight
10.4 kg / 22.9lbs
Control and Connection Specifications
USB port
Type A
USB rating
5V DC, 0.5A
Supporting file formats
mp3
MP3 codec
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate
16 - 48 kHz
Bluetooth version
5.3
Bluetooth profile
A2DP 1.3, AVRCP 1.6
Bluetooth transmitter frequency range
2400 MHz – 2483.5 MHz
Bluetooth Max. transmitting power
<10 dBm (EIRP)
Bluetooth modulation
GFSK, π/4 DQPSK, 8DPSK
2.4G wireless transmitter frequency range
2402-2481 MHz
2.4G wireless transmitter power
＜10dBm (EIRP）
2.4G wireless modulation
GFSK
Video Specifications
HDMI video input
1
HDMI video output (with Enhanced Audio Return Channel, ear)
1
HDMI HDCP version
2.3
What's in The Box
1x Soundbar
1x Wireless subwoofer

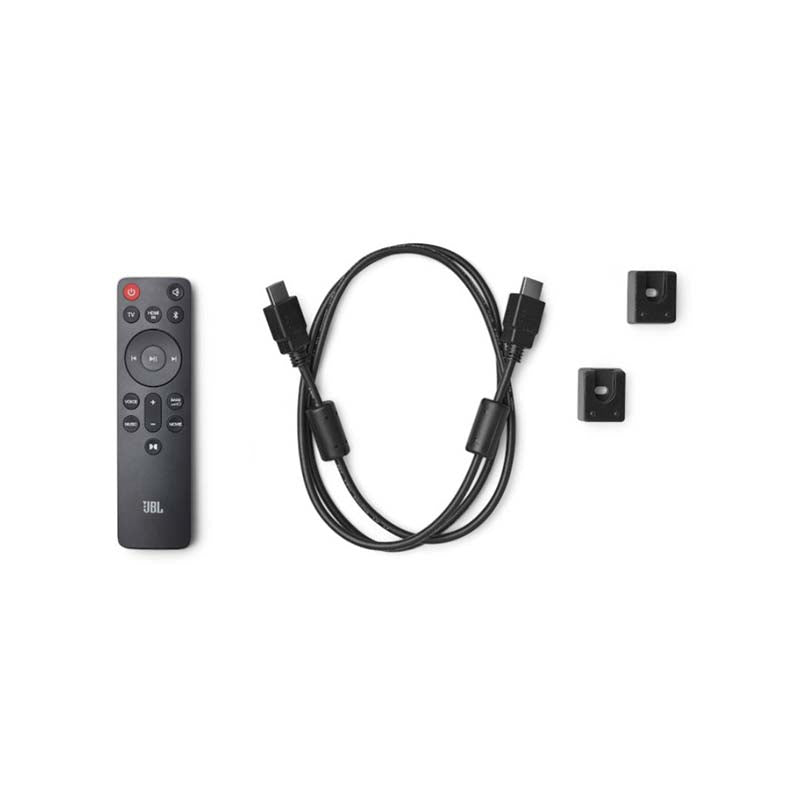

1x Remote control with batteries
1x Power cords (up to 8pcs depending on region SKUs)
1x HDMI cable
1x Wall-mount bracket kit with screws
1x Quick start guide
1x Warranty card
1x Safety sheet
