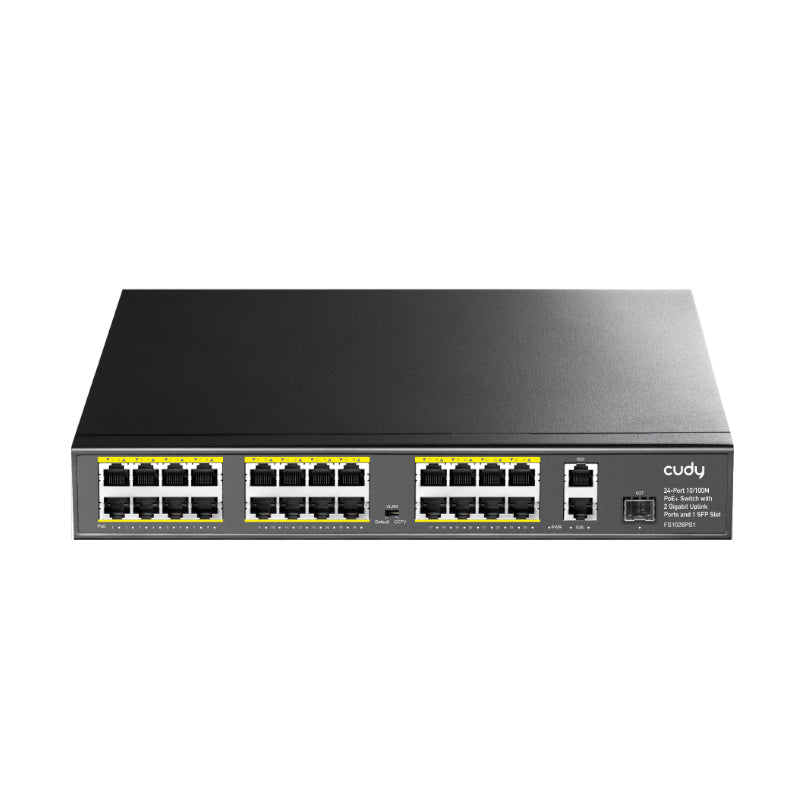

Cudy 24-Port 10/100M+ PoE Switch Combo

SKU: FS1026PS1
Barcode: 6971690791353
R 2,029.00 R 2,899.00
-R 870.00
Split into interest-free payments with

The Cudy FS1026PS1 26-Port 10/100M PoE+ Switch with 1 FSP Slot allows you to manage your home or office network with ease. It features 24 Ethernet PoE ports with 2 uplink ports and 1 SFP slot. It's PoE RJ-45 connectors support any 10/100Mbps Ethernet devices, while the 2 non-PoE uplink ports support 10/100/1000Mbps Ethernet devices and it's compliant with IEEE 802.3af/802.3at network standards. Used for many applications the Cudy FS1026PS1 works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a VLAN mode for additional security, this allows the ports to be isolated from one another. Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design with venting holes to help dissipate heat with silent operation. Watchdog guarantees the uninterrupted operation of your PoE devices. The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

Online Only

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 10 and June 14. !

Free Collection Within Gauteng

Free 7 Day Return Policy

Limited Warranty Available

Get It Now, Pay Later

* 7-Day Returns

Change-of-mind returns are accepted within 7 days on eligible products that remain unopened, unused, and in resellable condition. Opened or activated devices and accessories may not qualify for return. ⁠View our full Returns Policy.
Cudy 24-Port 10/100M+ PoE Switch Combo
R 2,029.00 R 2,899.00
R 2,029.00 R 2,899.00
Choose option
Color: Default Title
  • Default Title

Cudy 24-Port 10/100M+ PoE Switch Combo

The Cudy FS1026PS1 26-Port 10/100M PoE+ Switch with 1 FSP Slot allows you to manage your home or office network with ease. It features 24 Ethernet PoE ports with 2 uplink ports and 1 SFP slot. It's PoE RJ-45 connectors support any 10/100Mbps Ethernet devices, while the 2 non-PoE uplink ports support 10/100/1000Mbps Ethernet devices and it's compliant with IEEE 802.3af/802.3at network standards.

Used for many applications the Cudy FS1026PS1 works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a VLAN mode for additional security, this allows the ports to be isolated from one another.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design with venting holes to help dissipate heat with silent operation.

Watchdog guarantees the uninterrupted operation of your PoE devices. The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

FEATURES:

24 x 10/100M PoE+ ports

2 x Gigabit Uplink port

1 x 1.25Gbps SFP slot

300 Watts PoE power budget

IEEE 802.3at / IEEE 802.3af standard compliant

Plug&play, simple setup with no configuration needed

Specifications

SPECIFICATIONS:

Connector Type: 24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot

Network Protocols:

IEEE802.3

IEEE802.3u

IEEE802.3ab

IEEE802.3x

IEEE802.3z

PoE Parameters:

PoE Standard: IEEE802.3af /IEEE802.3at

Max each port: 15.4W ( IEEE 802.3af )

Max each port：30W ( IEEE 802.3at )

PoE compatibility: IEEE 802.3af/at adaptive

PoE port output: DC48-55V

Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)

Network Media:

10BASE-T: Cat 6 UTP(≤250 meters)

100BASE-TX: Cat5 or more UTP (≤100 meters)

1000BASE-TX: Cat5 or more UTP (≤100 meters)

Optical:

Multi-Mode Fiber: 850nm, 1310nm

Transmission Distance: 550m/2Km

Single-Mode Fiber: 1310nm, 1550nm

Transmission Distance: 20/40/60/80/100/120km

Performance Specification

Bandwidth: 10.8Gbps

MAC Address: 2K

Packet Buffer Memory: 1M

Packet Forwarding Rate: 8Mpps

Forwarding Mode: Store-And-Forward

Power Supply

Product Input Voltage: AC100-240V 50/60Hz

Output: 52V5.76A, Power Budget: 300W

Led indicator:

PWR - Power supply indicator(Red):

Lighting: Powered

Un-Light: No Power

SW - DIP indicator(Green):

OFF: Normal

Vlan: Lighting

Extend: Slow flash

1-27 - RJ-45 ACT indicator(Green):

Lighting: Connecting

Flashing: Data Transmit

Un-Light: Disconnect

MTBF: 100,000 hours

Product Dimensions: 32 x 21 x 4.6 cm

Product Weight: 1900g

WHAT'S IN THE BOX:

Cudy FS1026PS1 26-Port 10/100M PoE+ Switch with 1 FSP Slot - Grey x1

Power Adapter x1
