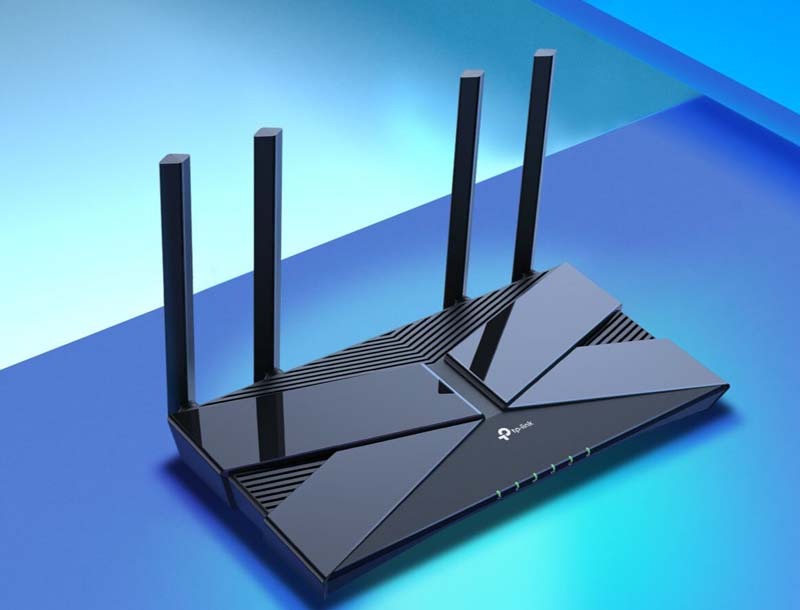

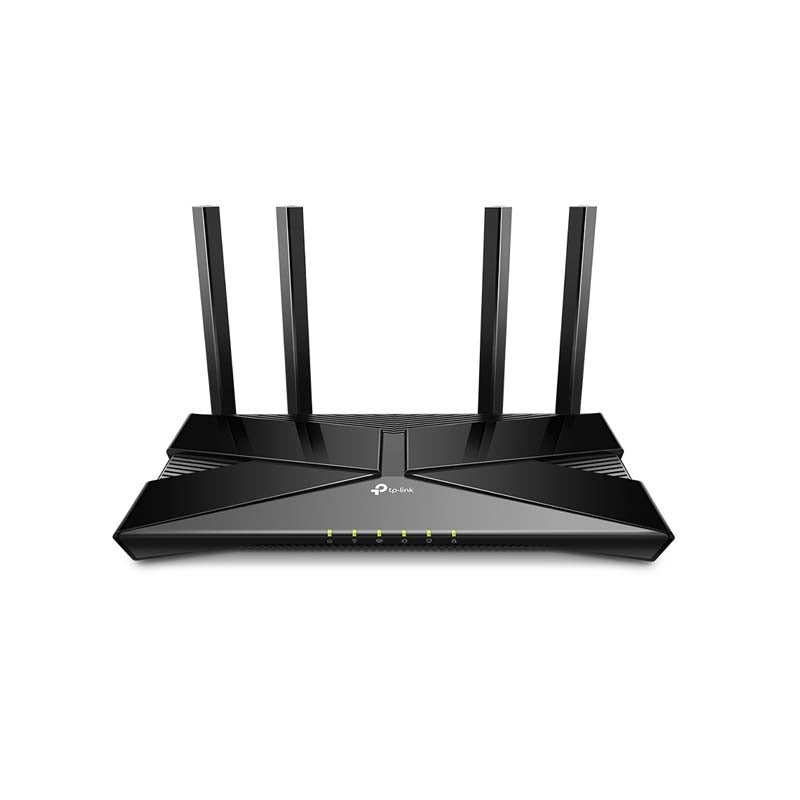

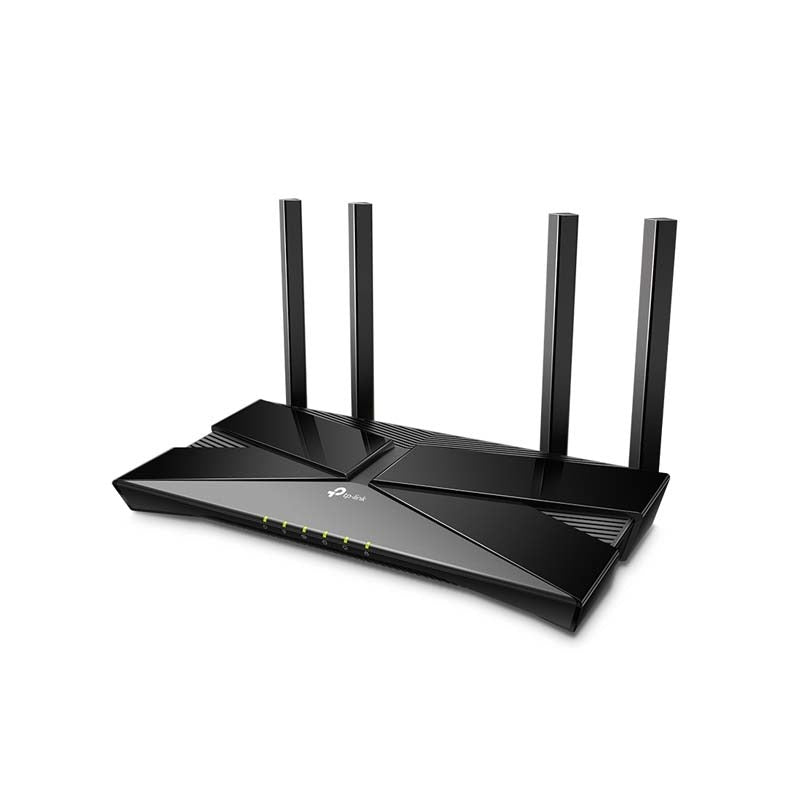

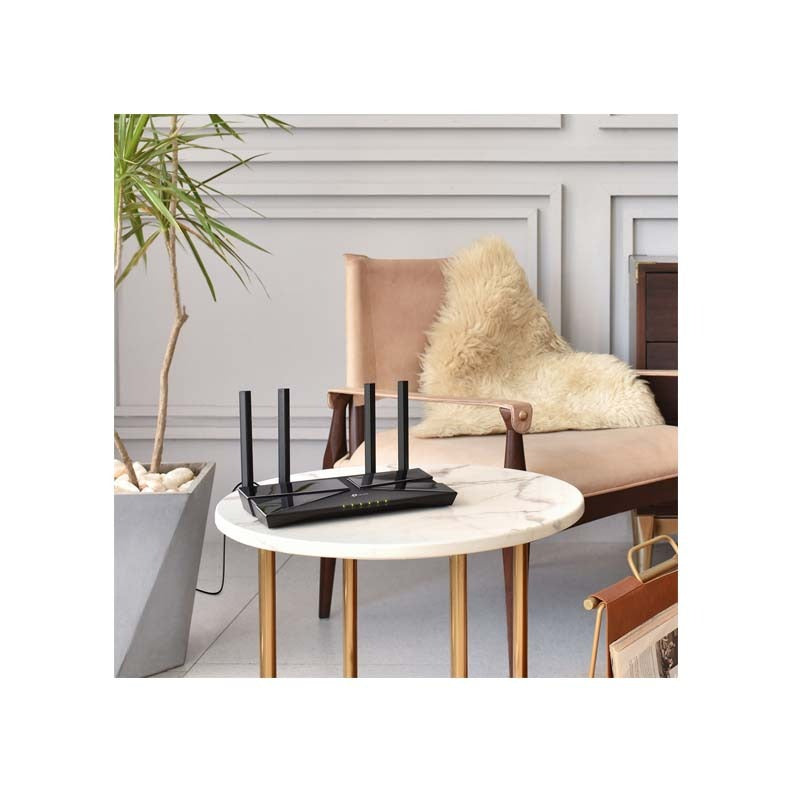

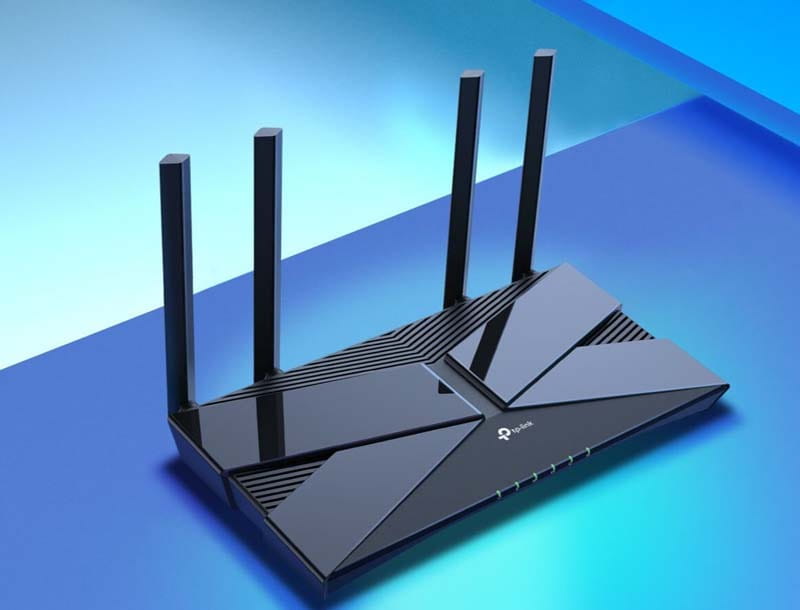

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router
TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router
Explore the New Era of WiFi
AX1800 Dual-Band Wi-Fi 6 Router
WiFi 6 Upgrades Everything
The latest generation of WiFi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Super-Fast WiFi 6
Transfer HD movies in 10 seconds. WiFi 6's 1024-QAM improves encoding efficiency by 25% while the improved symbol rate boosts data rate by 11%. Enjoy broaderbandwidth while streamingcontent on multiple devices.
Connect More, Stay Fast
Enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.

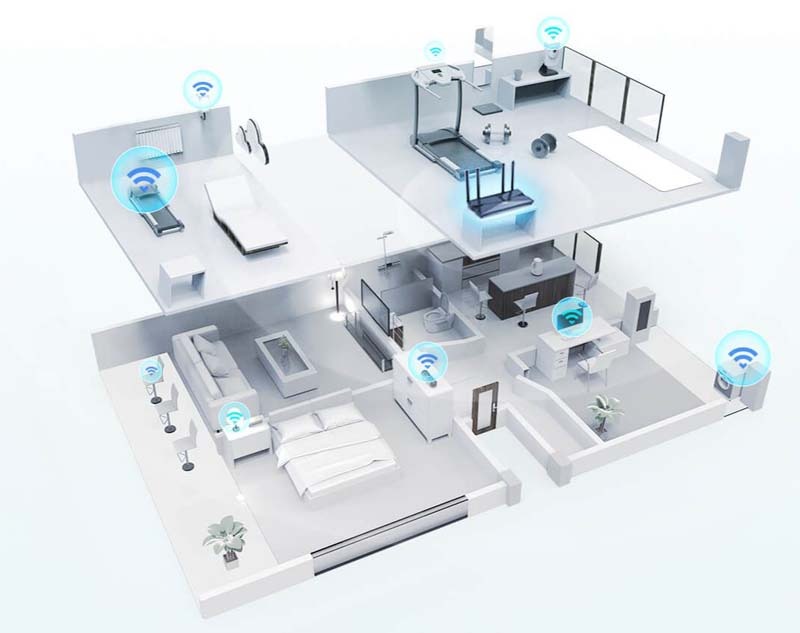

WiFi Coverage Throughout Your Home

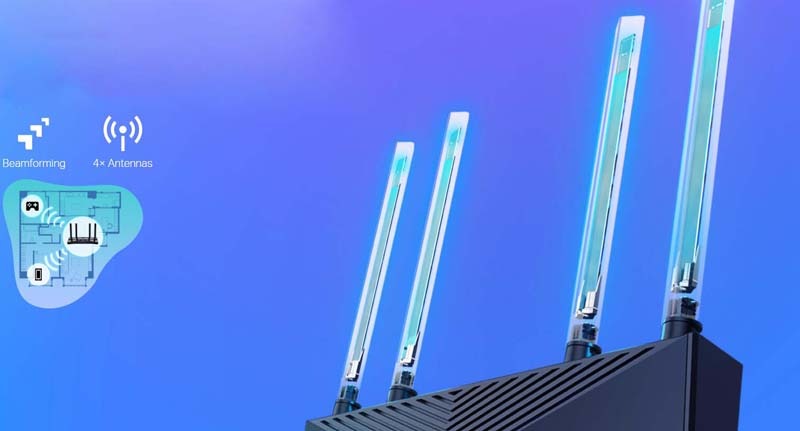

4× high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for those in previously hard-to-reach areas.

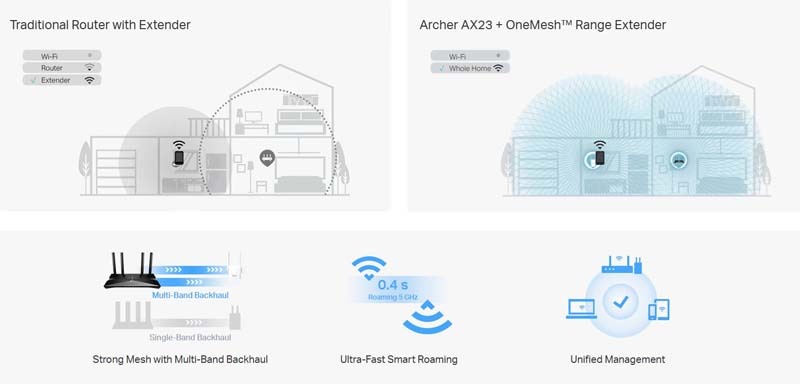

TP-Link OneMesh
Flexibly Create Whole Home WiFi
Want to build a whole-home WiFi? Archer AX23 supports OneMesh to form seamless coverage throughout your home, preventing drops and lag when moving between signals.
WPA3—The Next Level of Cybersecurity
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.

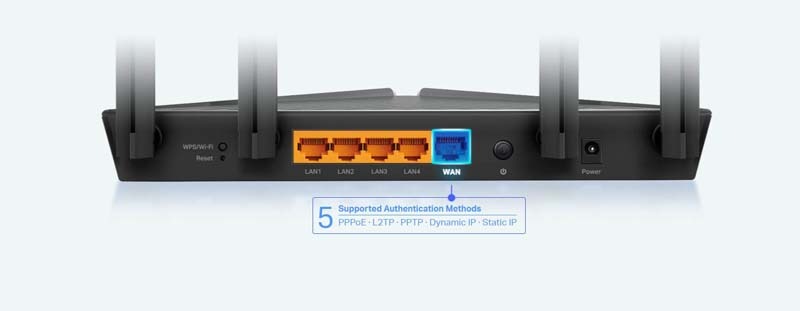

Universal ISP Support
Europe has the most diverse connection types, and TP-Link knows this. Archer AX23 works with all European ISPs by supporting most authentication methods, including the popular L2TP and PPTP methods in your region.
TP-Link
TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router
Online Only
Estimated delivery between June 10 and June 14.
Get It Now, Pay Later
* 7-Day Returns
Change-of-mind returns are accepted within 7 days on eligible products that remain unopened, unused, and in resellable condition. Opened or activated devices and accessories may not qualify for return. View our full Returns Policy.
TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router
Explore the New Era of WiFi
AX1800 Dual-Band Wi-Fi 6 Router
WiFi 6 Upgrades Everything
The latest generation of WiFi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Super-Fast WiFi 6
Transfer HD movies in 10 seconds. WiFi 6's 1024-QAM improves encoding efficiency by 25% while the improved symbol rate boosts data rate by 11%. Enjoy broaderbandwidth while streamingcontent on multiple devices.
Connect More, Stay Fast
Enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.
WiFi Coverage Throughout Your Home
4× high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for those in previously hard-to-reach areas.
TP-Link OneMesh
Flexibly Create Whole Home WiFi
Want to build a whole-home WiFi? Archer AX23 supports OneMesh to form seamless coverage throughout your home, preventing drops and lag when moving between signals.
WPA3—The Next Level of Cybersecurity
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.
Universal ISP Support
Europe has the most diverse connection types, and TP-Link knows this. Archer AX23 works with all European ISPs by supporting most authentication methods, including the popular L2TP and PPTP methods in your region.
Specifications
Specifications
WIRELESS
Standards and Protocols
Wi-Fi 6
IEEE 802.11ax/ac/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range
2-3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams
Connect your devices to more bandwidth
Working Modes
Router Mode
Access Point Mode
SECURITY
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server
OpenVPN
PPTP
WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor
Dual-Core CPU
Ethernet Ports
1× Gigabit WAN Port
4× Gigabit LAN Ports
Buttons
WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power
12 V ⎓ 1 A
SOFTWARE
Protocols
IPv4
IPv6
One Mesh™
One Mesh Supported
Without replacing your existing devices or buying a whole new Wi-Fi ecosystem, One Mesh helps you create a more flexible network that covers your entire home with TP-Link One Mesh products.
Easy Mesh
Mesh networking creates smooth, fast, stable roaming. Archer AX23 can flexibly build an Easy Mesh network with Easy Mesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.
Parental Controls
URL Filtering
Time Controls
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS by Device
Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Address Reservation
DHCP Client List
Server
DDNS
TP-Link
NO-IP
DynDNS
Management Features
Tether App
Webpage
OTHER
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications
FCC, CE, RoHS
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power
CE:
<20dBm (2.4 GHz)
<23dBm (5.15 GHz~5.25 GHz)
FCC:
<30dBm (2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity
EU Version
5G
11a 6Mbps: -96dbm
11a 54Mbps: -75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT80_MCS9: -62dbm
11ax HE20_MCS0: -95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11: -59dbm
2.4G
11g 6Mbps: -96dbm
11g 54Mbps: -75dbm
11n HT20_MCS0: -95dbm
11n HT20_MCS7: -75dbm
11n HT40_MCS0: -92dbm
11n HT40_MCS7: -72dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -72dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0: -95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm
US Version
5G
11a 6Mbps: -96dbm
11a 54Mbps: -75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT40_MCS9: -62dbm
11ax HE20_MCS0: -95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11: -59dbm
2.4G
11g 6Mbps: -96dbm
11a 54Mbps: -75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -72dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0: -95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm
PHYSICAL
Dimensions (W×D×H)
10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
What’s in the box
1x Wi-Fi Router Archer AX23
1x Power Adapter
1x RJ45 Ethernet Cable
1x Quick Installation Guide
