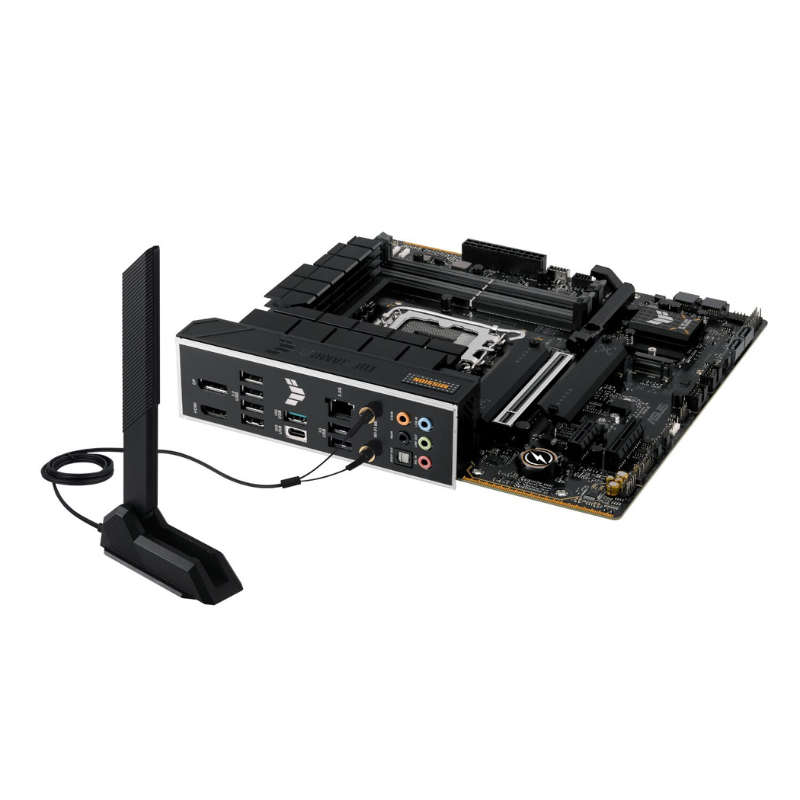

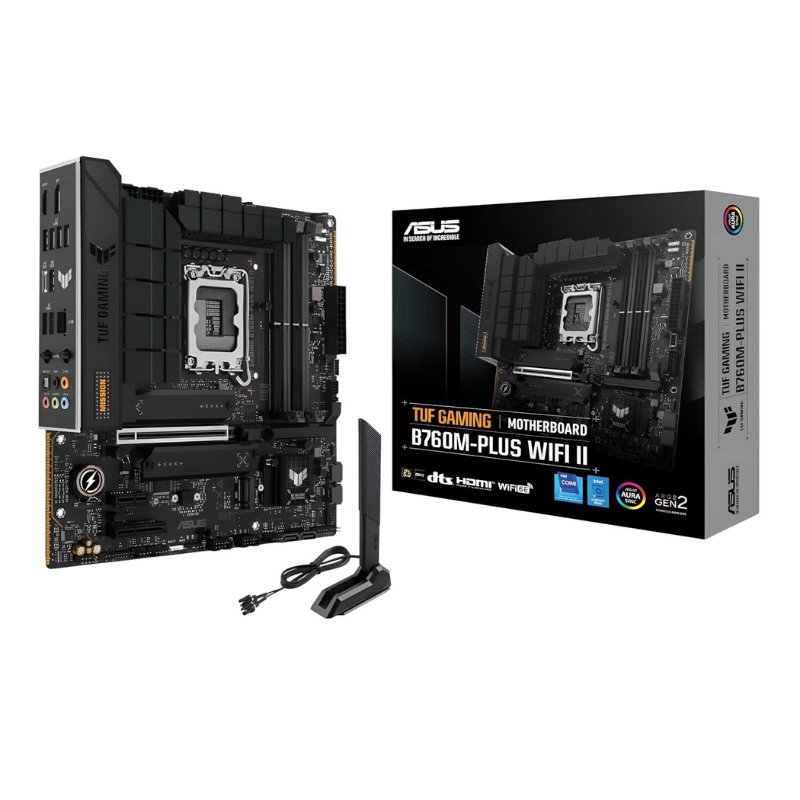

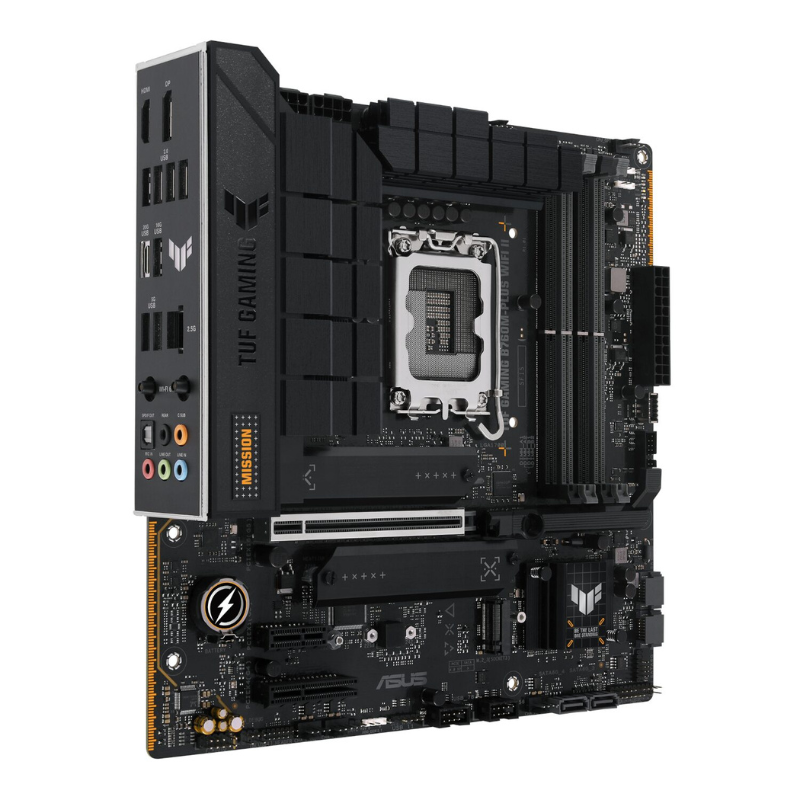

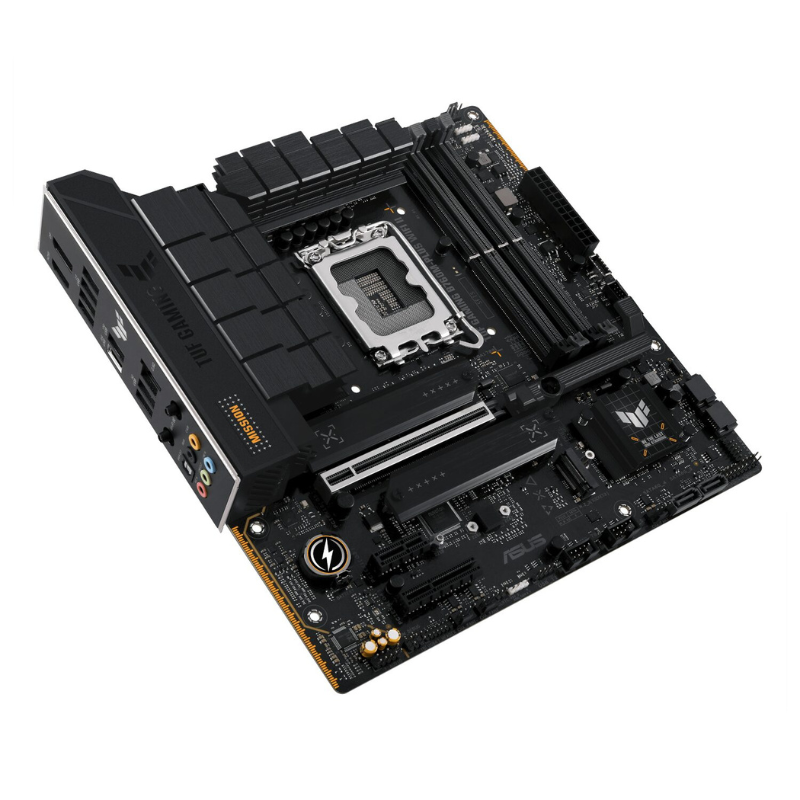

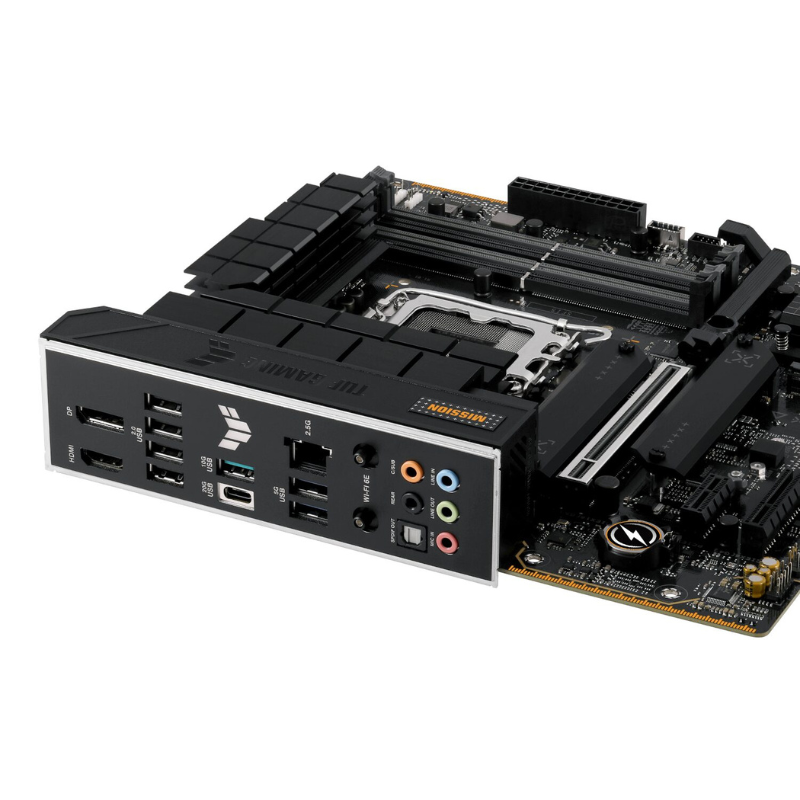

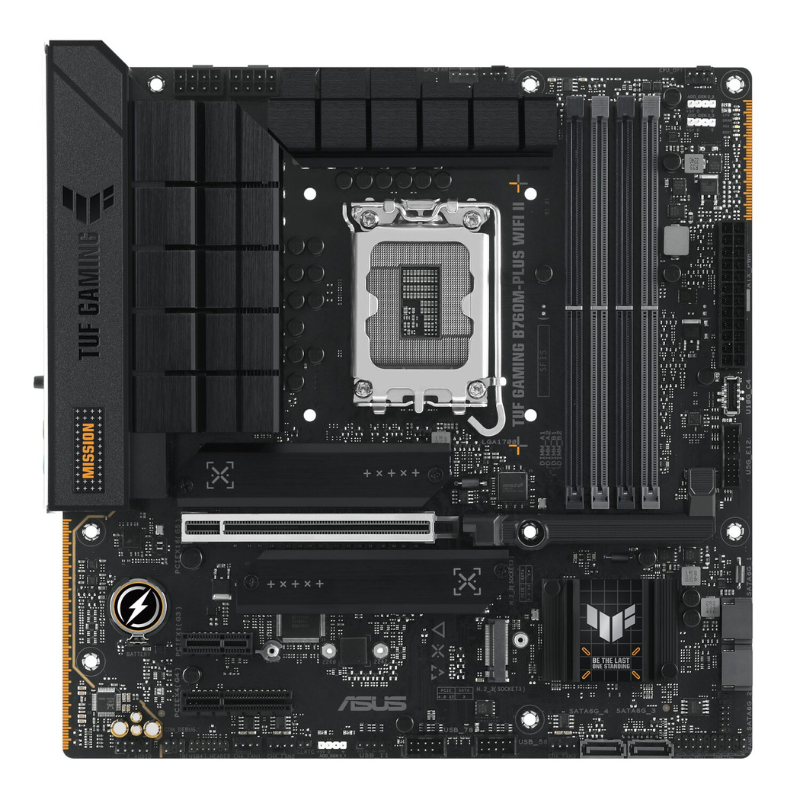

Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard

Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard

R 4,099.00 R 6,499.00

Choose option

Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard

The Asus TUF Gaming B760M-PLUS WIFI II is a robust micro-ATX Motherboard that delivers exceptional durability, advanced performance, and rock-solid stability for 14th,13th and 12th Gen Intel Core processors. Engineered with military-grade components and TUF-tested reliability, it caters to competitive gamers, PC builders, and performance-driven users seeking a balance between next-gen features and dependable construction.

At its core, the Asus TUF Gaming B760M-PLUS Motherboard features a 12+1 DrMOS power stage VRM architecture, enlarged VRM heatsinks, and a six-layer PCB design to ensure stable power delivery under high-load conditions. It supports DDR5 memory for faster data throughput, lower power consumption, and superior multitasking capabilities. PCIe 5.0 support unlocks future-ready bandwidth for the latest GPUs, while dual PCIe 4.0 M.2 slots with M.2 Q-Latch simplify high-speed SSD installation.

Seamless connectivity is a cornerstone with integrated Wi-Fi 6E ensuring low-latency wireless networking across the 6 GHz spectrum, while the Intel 2.5 Gb Ethernet port offers ultra-fast wired connections. Comprehensive cooling controls include hybrid fan headers, AI-powered Fan Xpert 2+ software, and precision thermal monitoring to maintain optimal system performance.

Built for DIY ease, it includes a pre-mounted I/O shield, Q-LED diagnostic indicators, and ASUS SafeSlot Core+ for reinforced GPU retention. The rugged design aesthetic is complemented by support for ASUS Aura Sync RGB lighting, allowing users to personalise builds with unified lighting control. Whether you’re building a compact gaming rig or a high-efficiency workstation, the Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard delivers a future-proof platform tailored for speed, stability, and endurance.

FEATURES:

Intel LGA1700 socket supports 14h & 13th Gen Intel Core™, 12th Core, Pentium Gold, and Celeron processors

12+1 DrMOS power stages and durable components ensure reliable, stable performance for demanding workloads.

DDR5 memory supports advanced multitasking and gaming responsiveness

Next-gen PCIe 5.0 support provides ultra-high bandwidth for the latest GPUs, enhancing visual performance and data throughput

Dual PCIe 4.0 M.2 slots support NVMe SSDs for ultra-fast game and application loading times

Wi-Fi 6E connectivity delivers high-speed, low-latency wireless networking across the 6 GHz band

Intel 2.5Gb Ethernet provides high-speed wired networking ideal for streaming, competitive gaming, and heavy data transfers

Enlarged VRM heatsinks, hybrid fan headers, and Fan Xpert 2+ software maintain thermal efficiency under load

Military-grade components and six-layer PCB ensure long-term reliability and enhanced power integrity

DIY-friendly design includes pre-mounted I/O shield, M.2 Q-Latch, SafeSlot Core+, and Q-LED indicators

ASUS Aura Sync RGB support offers customisable lighting synchronisation with compatible components

Armoury Crate centralised software for performance tuning, RGB control, and real-time system monitoring

Specifications

SPECIFICATIONS:

CPU:

Chipset: Intel B760 Chipset

CPU Compatibility: Supports Intel 14th,13th & 12th Gen Core™, Pentium Gold and Celeron Processors

CPU Socket: LGA1700

Memory Support:

4 x DIMM slots, up to 192GB total

DDR5 7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz

Dual-channel architecture

Intel Extreme Memory Profile (XMP) support

Graphics:

1 x DisplayPort

1 x HDMI™port

Expansion Slots:

Intel CoreTM Processors (14th & 13th & 12th Gen)*

1 x PCIe 5.0 x16 slot

Intel B760 Chipset

1 x PCIe 4.0 x4 slot

1 x PCIe 3.0 x1 slot

Storage:

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Intel CoreTM Processors (14th & 13th & 12th Gen)

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel B760 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

4 x SATA 6Gb/s ports

Ethernet: 1 x Realtek 2.5Gb ethernet TUF LANGuard

Wireless & Bluetooth:

2x2 Wi-Fi 6E (802.11ax)

Bluetooth v5.3 (2.4/5/6GHz)

USB:

Rear USB (Total 8 ports)

1 x USB 20Gbps port (1 x USB Type-C®)

1 x USB 10Gbps port (1 x Type-A)

2 x USB 5Gbps ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 8 ports)

1 x USB 10Gbps connector (supports USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

3 x USB 2.0 headers support 5 additional USB 2.0 ports

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-bit/192 kHz playback

Audio Features

Audio Shielding

Rear optical S/PDIF out port

Premium audio capacitors

Dedicated audio PCB layers

Back Panel I/O Ports:

1 x USB 20Gbps port (1 x USB Type-C®)

1 x USB 10Gbps port (1 x Type-A)

2 x USB 5Gbps ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

Internal I/O Connectors:

I/O Connectors Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 10Gbps connector (supports USB Type-C )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

3 x USB 2.0 headers support 5 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt (USB4®) header

Special Features:

ASUS TUF PROTECTION

DIGI+ VRM (- Digital power design with DrMOS)

ESD Guards

TUF LANGuard

Overvoltage Protection

SafeSlot Core+

Stainless-Steel Back I/O

ASUS Q-Design

M.2 Q-Latch

PCIe Slot Q-Release

Q-Antenna

Q-DIMM

Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

ASUS Thermal Solution

M.2 heatsinks

VRM heatsink design

ASUS EZ DIY

CPU Socket lever protector

ProCool

Pre-mounted I/O shield

SafeDIMM

AURA Sync

Addressable Gen 2 headers

Software Features:

ASUS Exclusive Software

Armoury Crate

AURA Creator

AURA Sync

Fan Xpert 2+

Power Saving

Two-Way AI Noise Cancellation

AI Suite 3

DIGI+ VRM

PC Cleaner

TUF GAMING CPU-Z

DTS Audio Processing

MyASUS

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

Manageability: WOL by PME, PXE

Operating System: Windows 11, Windows 10 64-bit

Form Factor:

Form Factor: mATX (micro-ATX)

Dimensions: (24.4 x 24.4 cm)

WHAT'S IN THE BOX:

Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard x1

SATA 6Gb/s cables x2

ASUS Q-Antenna x1

M.2 Rubber Package x1

TUF Gaming sticker x1

Screw packages for M.2 SSD x2

TUF Certification card x1

User guide x1
