TP-Link AC1200 Dual Band Outdoor Access Point - White
TP-Link AC1200 Dual Band Outdoor Access Point
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

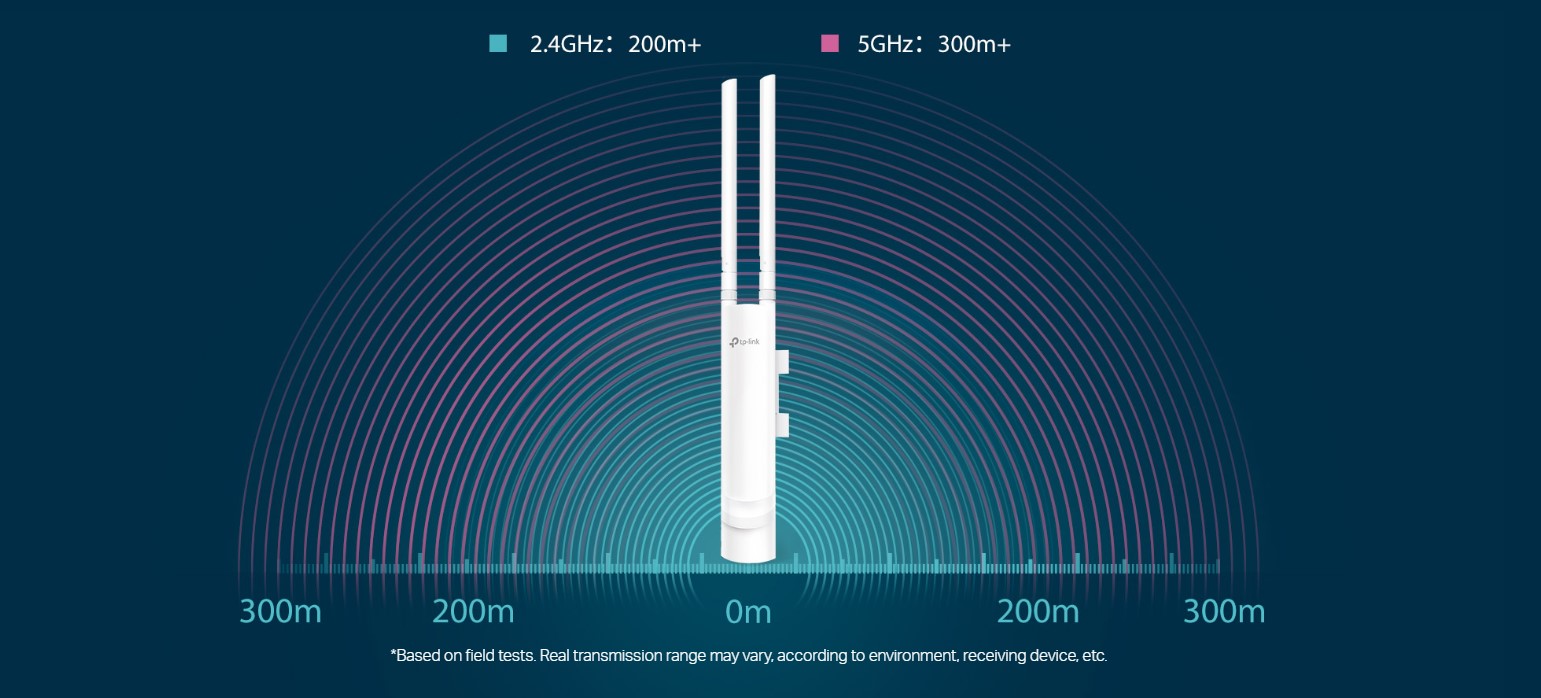

Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m at 2.4GHz and 300m at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

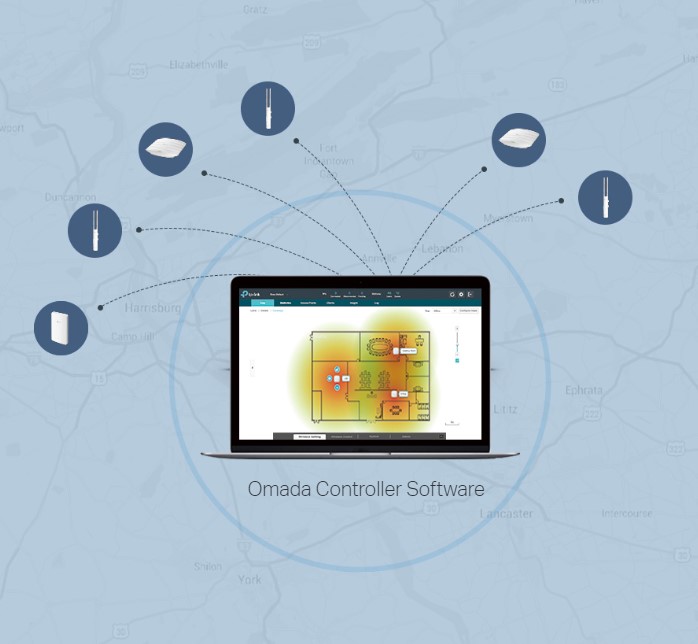

Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.
TP-Link
TP-Link AC1200 Dual Band Outdoor Access Point - White
Online Only
Estimated delivery between June 10 and June 14.
Get It Now, Pay Later
* 7-Day Returns
Change-of-mind returns are accepted within 7 days on eligible products that remain unopened, unused, and in resellable condition. Opened or activated devices and accessories may not qualify for return. View our full Returns Policy.
TP-Link AC1200 Dual Band Outdoor Access Point
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m at 2.4GHz and 300m at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.
Specifications
HARDWARE FEATURES | |
|---|---|

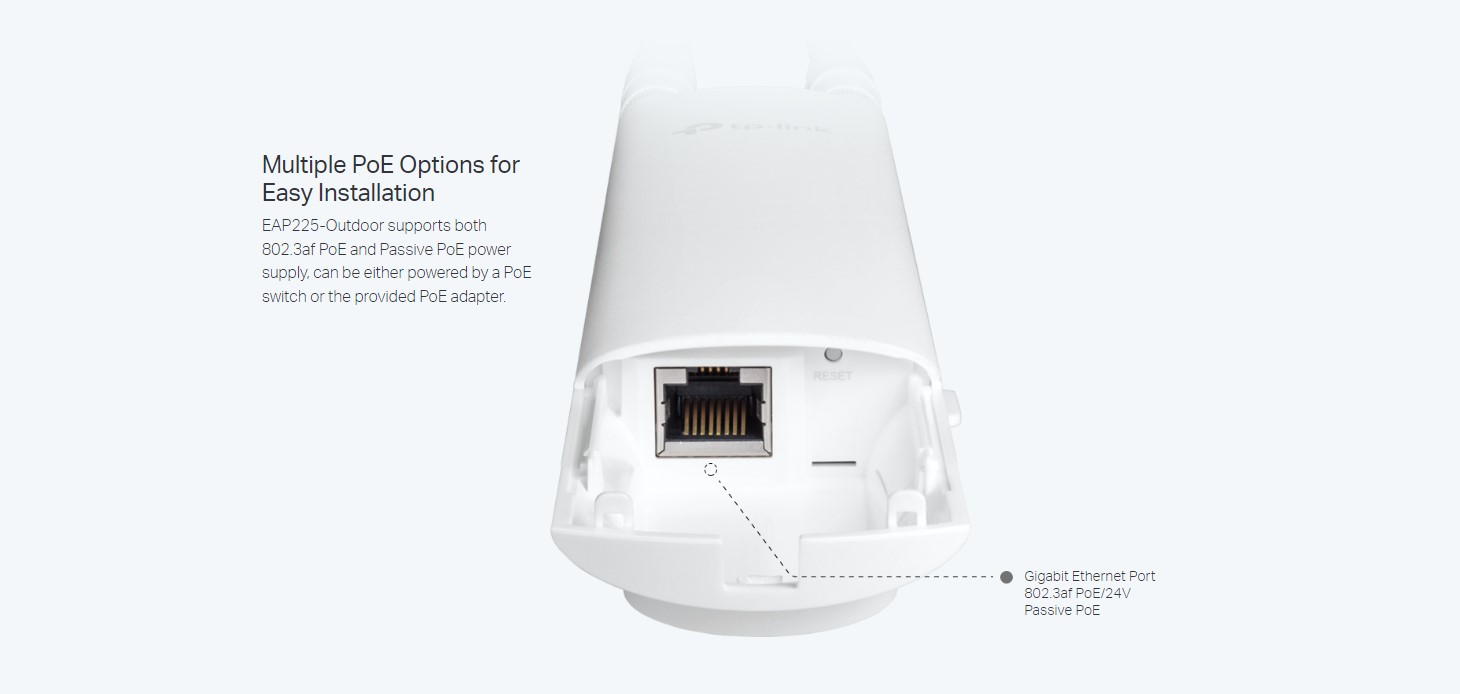

| Interface | Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE) |
| Button | Reset |
| Power Supply | 802.3af/A PoE 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 10.5W |

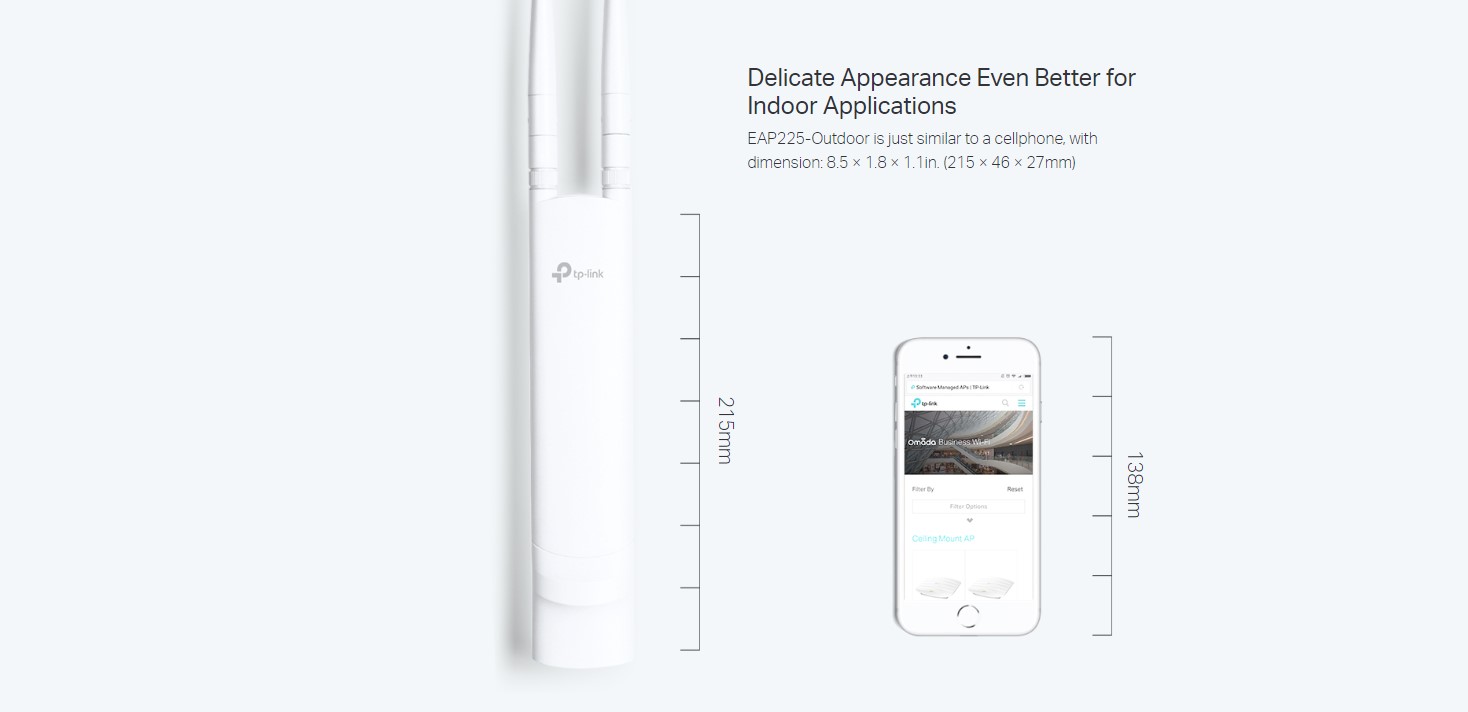

| Dimensions ( W x D x H ) | 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm) |

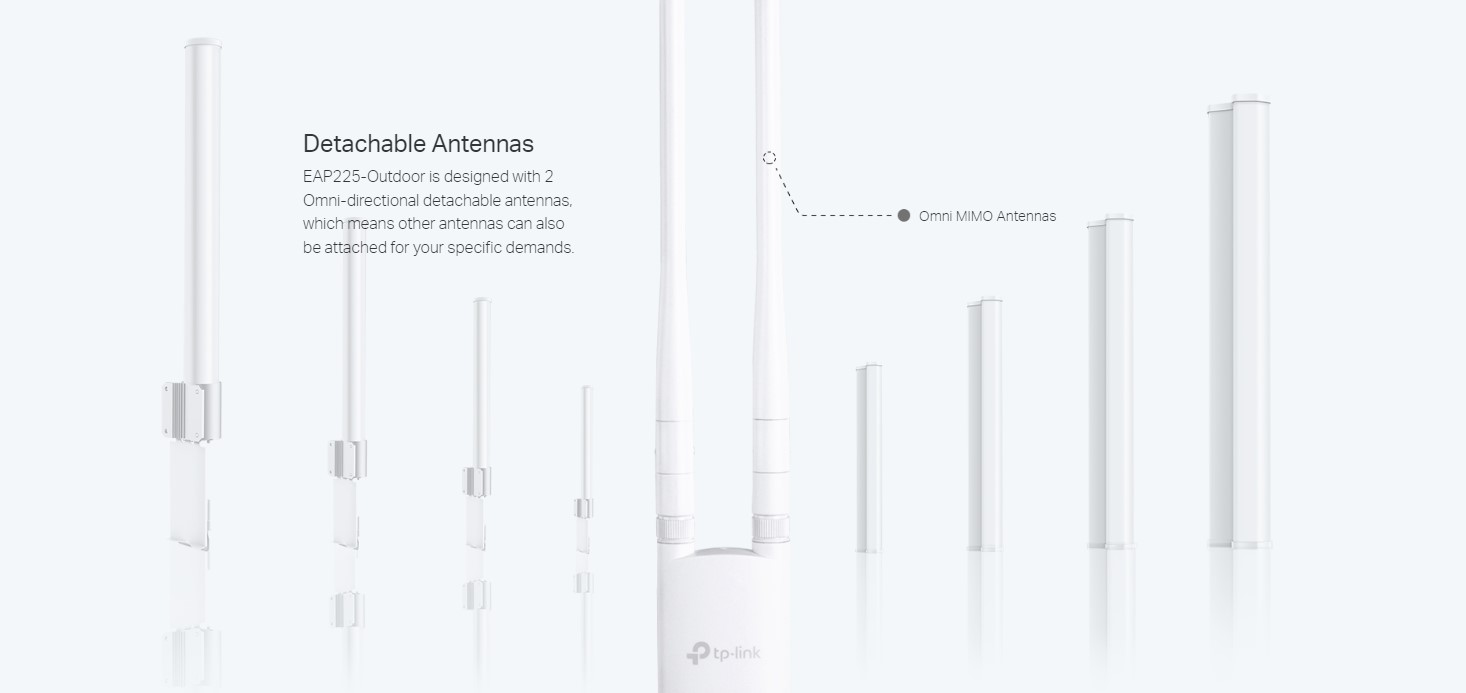

| Antenna | 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi |
| Weatherproof Enclosure | IP65 |

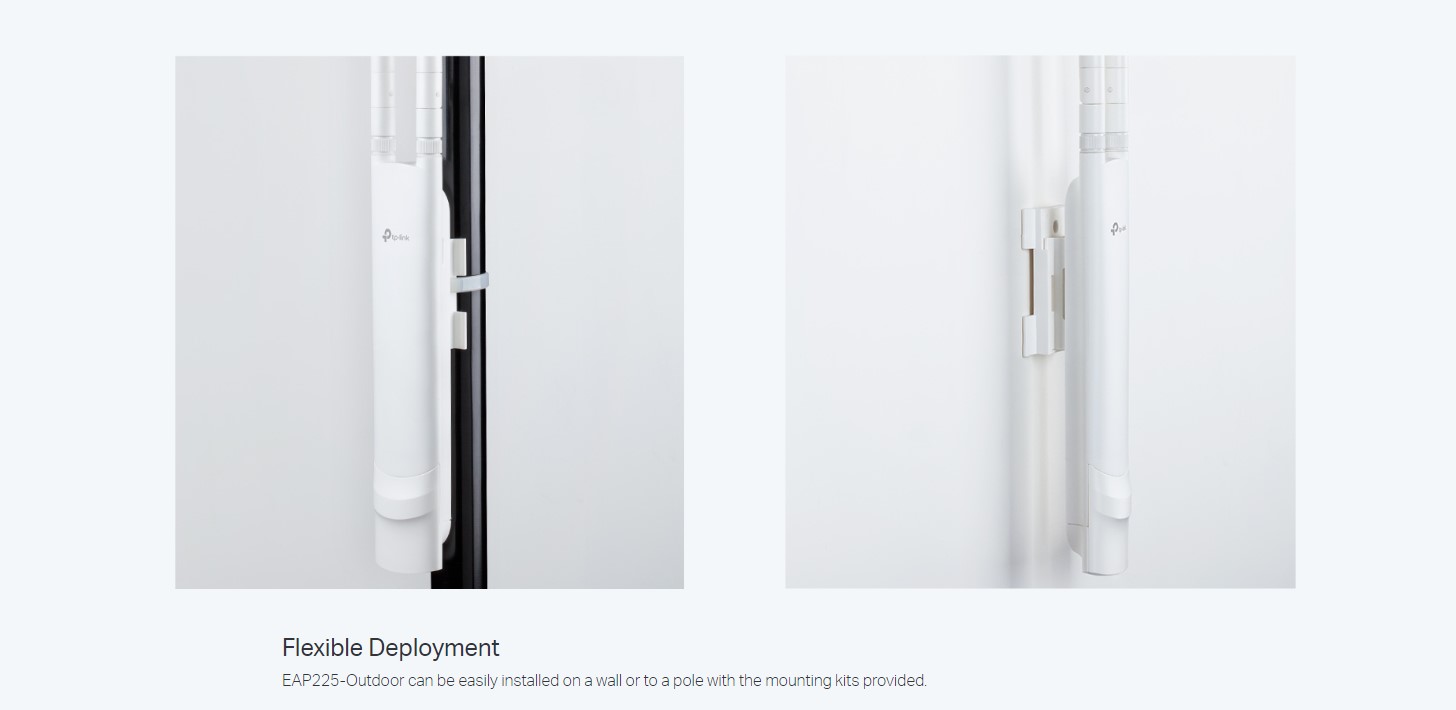

| Mounting | Pole/Wall Mounting (Kits included) |
| Hardware Watch Dog | Yes |
WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 5.5, 11Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Functions | Multiple SSIDs（Up to 16 SSIDs, 8 for each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) MU-MIMO Airtime Fairness Beamforming Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support |
| Transmission Power | • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP) • FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz) |
MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Omada Controller Software | Yes |
| Cloud Access | Yes |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
OTHERS | |
|---|---|
| Certification | CE、FCC、RoHS |
| Package Contents | AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point EAP225-Outdoor Power Adapter Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: -30℃~70℃ (-22℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
