TP-Link LiteWave 5 Port Gigabit Desktop Switch - Grey
TP-Link LiteWave 5 Port Gigabit Desktop Switch
Let LightWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

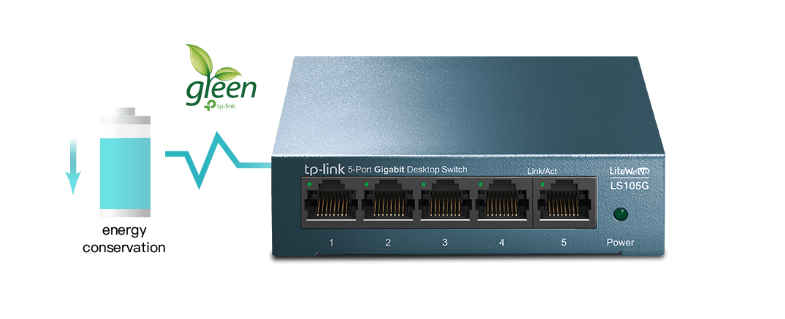

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

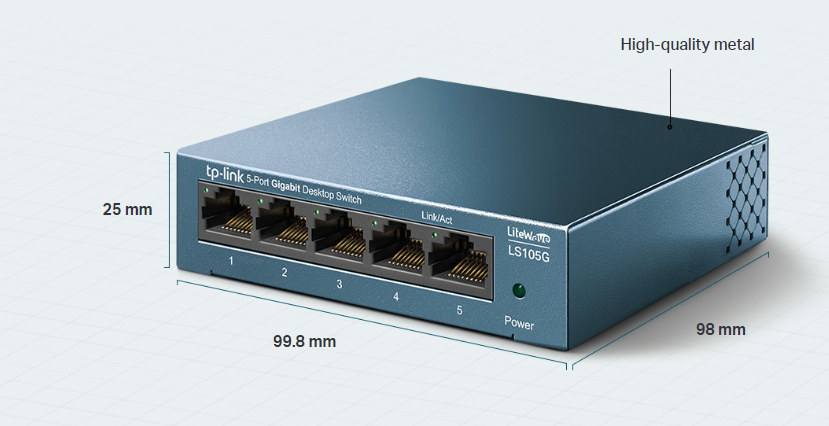

Durable Metal Casing
The interior components of LS105G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS105G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.
Use Where You Need, However You Need
The LS105G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
| Interface | 8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter • V1, V3: 9VDC / 0.6A • V2: 5VDC / 0.6A |
| LED Indicator | System Power Link/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm) |
| Max Power Consumption | 3.7W(220V/50Hz) |
| Max Heat Dissipation | 12.617 Btu/hr |
PERFORMANCE | |
|---|---|
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
SOFTWARE FEATURES | |
|---|---|
| Advanced Features | Green Technology 802.3X Flow Control 802.1P/DSCP QoS |
| Transfer Method | Store and Forward |
OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | 8-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
| SKU | LS105G |
|---|---|
| Order Lead Time | From 6 January 2025 |
| Product Availability | Online Only |
