Mercusys 5 Port 10/100Mbps Desktop Switch
Mercusys 5 Port 10/100Mbps Desktop Switch
Easy Wired Network Expansion

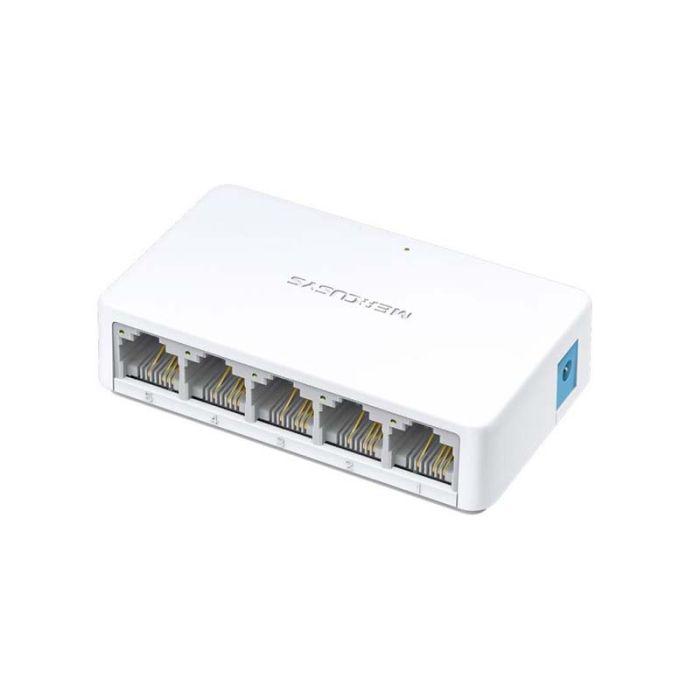

5-Port 10/100Mbps Desktop Switch
MS105
Sleek,Ultra-Compact Design

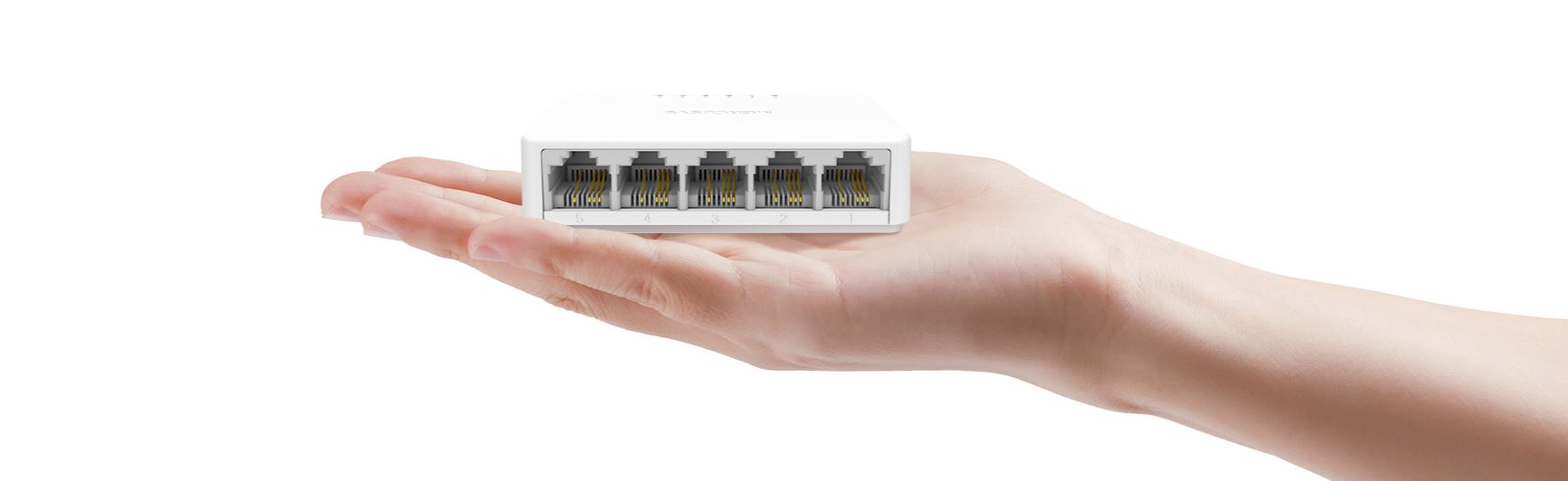

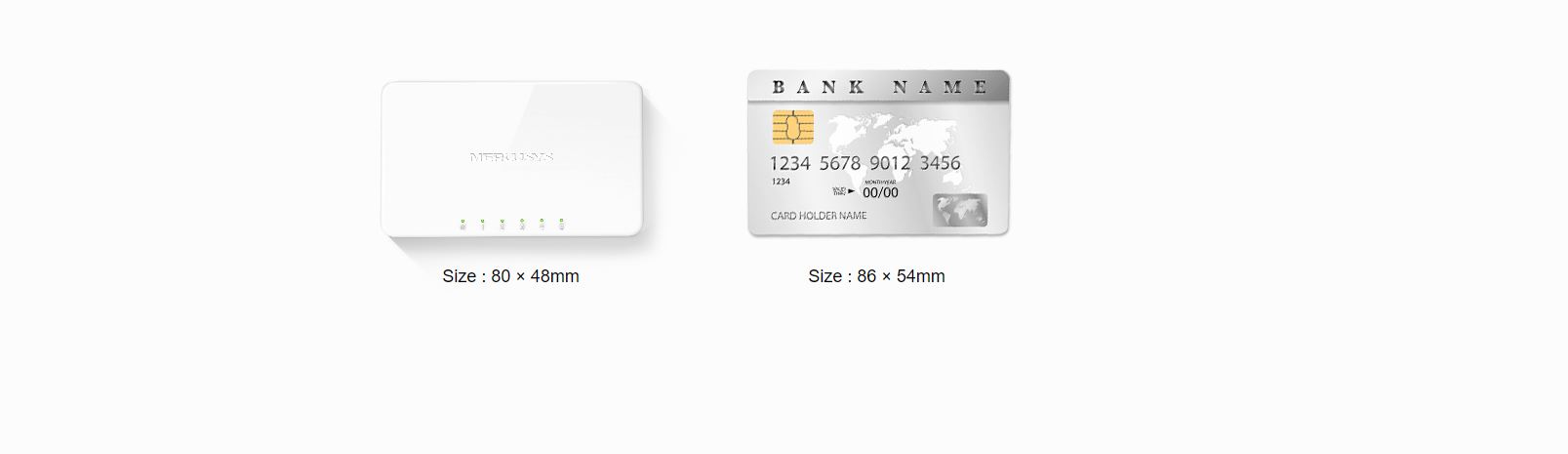

About the same size as a credit card, the MS105 can be placed anywhere in your home without taking up too much space. Its fanless design allows it to remain unobtrusive, regardless of how long it has been running.
Expand Ethernet Network
With five 10/100Mbps Ethernet ports, you can quickly expand your wired network. The MS105 is flexible and is fully compatible
with computers, printers, IP cameras, smart TVs, game consoles, and more. This makes it perfect for
home, small office, and even dormitory environments.
Ease of Use
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Software
- Transfer Method
Store and forward
Hardware
- Dimensions (W X D X H)
82 x 49 x 21 mm
Interfaces
5 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX
External Power Supply
External power adapter
(Output: 5.0VDC/0.6A)
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD
Fan Quantity
Fanless
Data Rates
10/100Mbps at half duplex
20/200Mbps at full duplex
Buffer Capacity
768Kb
Jumbo Frame
2KB
Switching Capacity
1Gbps
LED
Ethernet (1, 2, 3, 4, 5), Power
| SKU | MS105 |
|---|---|
| Order Lead Time | 2 - 4 Working Days |
| Product Availability | Online Only |
