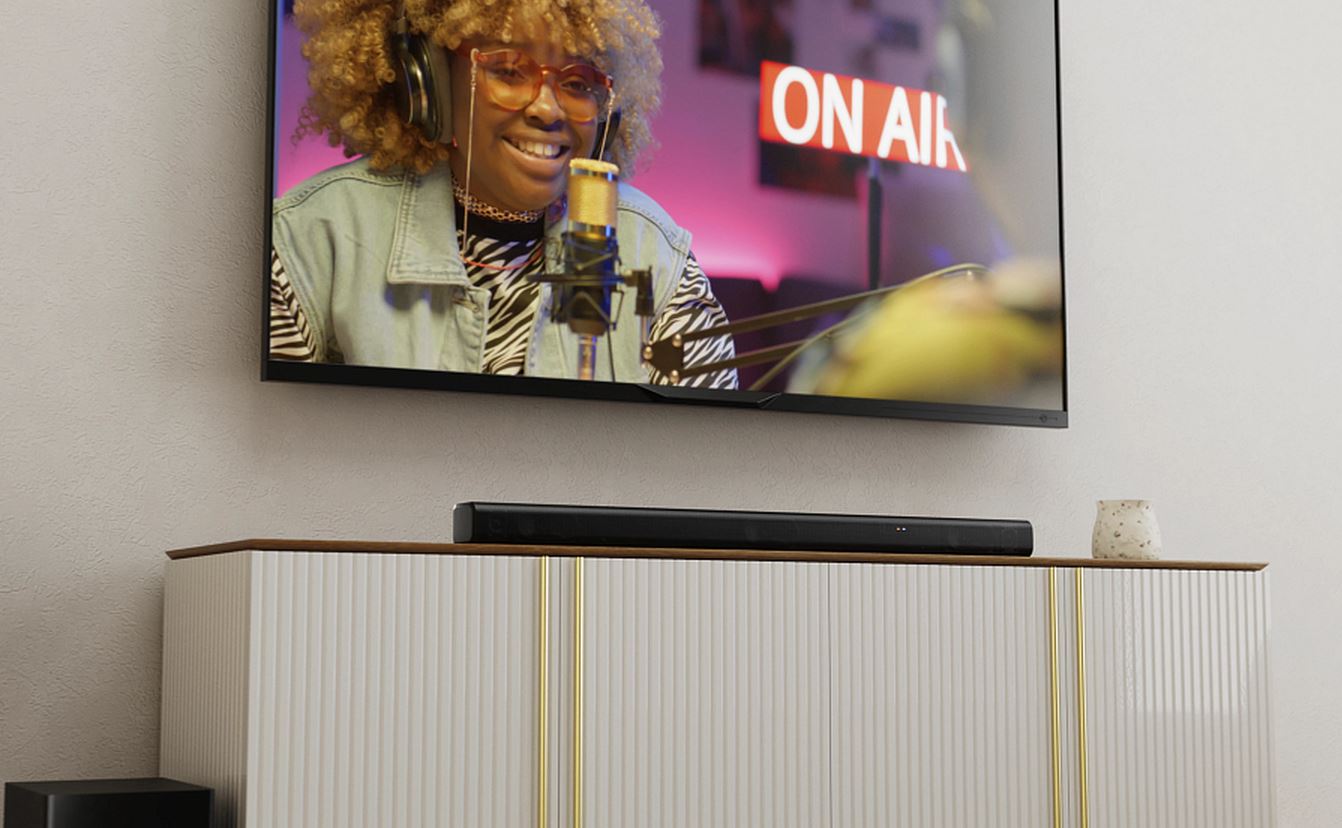

JBL Cinema SB560 3.1 Channel Soundbar with Wireless Subwoofer - Black

Specifications

Model

CINEMA SB560

Sound system

3.1 channel

Power supply

100 - 240V AC, ~ 50/60Hz

Total speaker power output (Max @THD 1%)

250W

Soundbar output power (Max @THD 1%)

150W

Subwoofer output power (Max. @THD 1%)

100W

Soundbar transducer

3x (45 x 100) mm racetrack drivers + 2x 13mm tweeters

Subwoofer transducer

5.25” (133 mm), wireless subwoofer

Standby power

< 0.5 W

Operating temperature

0°C - 45 °C

Audio Specifications

Frequency response

45Hz-20kHz (-10dB)

Audio inputs

1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Soundbar dimensions (W x H x D)

950 x 64 x 80 mm / 37.4’’ x 2.5’’ x 3.1’’

Subwoofer dimensions (W x H x D)

200 x 324 x 250 mm / 7.9" x 12.8" x 9.9"

Soundbar weight

2.5kg / 5.5 lbs

Subwoofer weight

4.2 kg / 9.3 lbs

Packaging dimensions (W x H x D)

1025 x 235 x 397 mm / 40.4" x 9.3" x 15.6"

Packaging Weight

8.8kg / 19.4 lbs

Control and Connection Specifications

USB port

Type A

USB rating

5V DC, 0.5A

Supporting file formats

mp3

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 - 48 kHz

Bluetooth version

5.3

Bluetooth profile

A2DP 1.3, AVRCP 1.6

Bluetooth transmitter frequency range

2400 MHz – 2483.5 MHz

Bluetooth Max. transmitting power

<10 dBm (EIRP)

Bluetooth modulation

GFSK, π/4 DQPSK, 8DPSK

2.4G wireless transmitter frequency range

2402-2481 MHz

2.4G wireless transmitter power

＜10dBm (EIRP）

2.4G wireless modulation

GFSK

Video Specifications

HDMI ARC (Audio Return Channel)

1

HDMI HDCP version

1.4

What's in The Box

1x Soundbar

1x Wireless subwoofer

1x Remote control with batteries

1x Power cords

1x HDMI cable

1x Wall-mount bracket kit with screws

1x Quick start guide

1x Warranty card

1x Safety sheet
