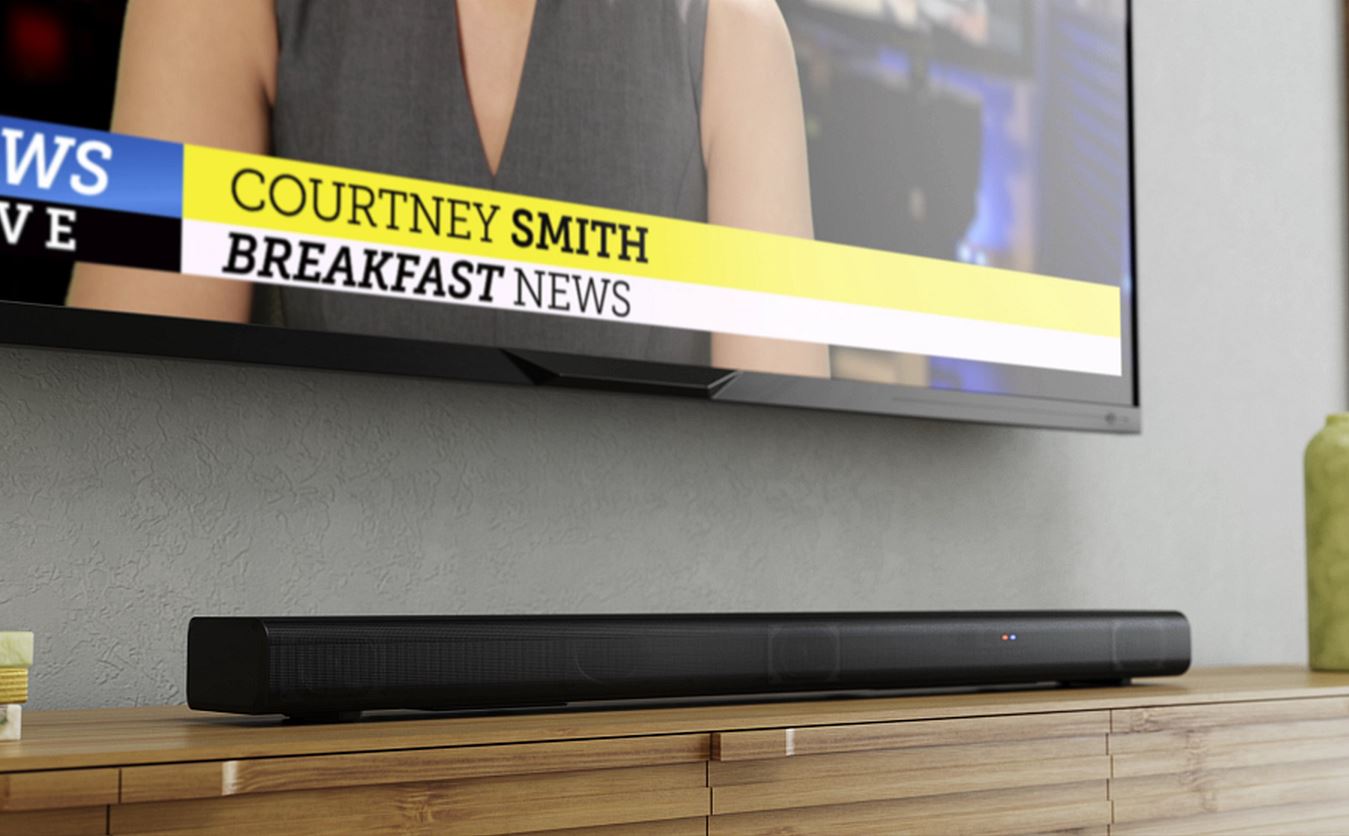

JBL Cinema SB510 3.1 Channel Soundbar with a Built-In Subwoofer - Black
JBL Cinema SB510 3.1 Channel Soundbar with a Built-In Subwoofer
DEDICATED CENTER CHANNEL DRIVER PROVIDES SUPERIOR VOICE CLARITY
A dedicated center channel delivers film and TV dialogue with amazing clarity. You'll never ask "What did they just say?" again.
BUILT-IN SUBWOOFER
The built-in subwoofer delivers deep bass without the need for another box or extra cables to clutter up your space.
ONE CABLE CONNECTION WITH HDMI ARC
The one cable HDMI ARC connection allows for the simplest set-up and a hassle-free user experience.
Specifications
Model
CINEMA SB510
Sound system
3.1 channel
Power supply
100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%)
200W
Soundbar output power (Max @THD 1%)
150W
Subwoofer output power (Max. @THD 1%)
50W
Soundbar transducer
3x (45 x 80) mm racetrack drivers
Subwoofer transducer
1x (70 x 88) mm, built-in subwoofer
Standby power
< 0.5W
Operating temperature
0°C - 45 °C
Audio Specifications
Frequency response
55Hz-20kHz (-10dB)
Audio inputs
1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Soundbar dimensions (W x H x D)
950 x 67 x 105 mm / 37.4’’ x 2.6’’ x 4.1’’
Soundbar weight
3.5kg / 7.7 lbs
Packaging dimensions (W x H x D)
1112 x 116 x 164 mm / 43.8" x 4.6" x 6.5"
Packaging Weight
5.0kg / 11.0 lbs
Control and Connection Specifications
USB port
Type A
USB rating
5V DC, 0.5A
Supporting file formats
mp3
MP3 codec
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate
16 - 48 kHz
Bluetooth version
5.3
Bluetooth profile
A2DP 1.3, AVRCP 1.6
Bluetooth transmitter frequency range
2400 MHz – 2483.5 MHz
Bluetooth Max. transmitting power
<10 dBm (EIRP)
Bluetooth modulation
GFSK, π/4 DQPSK, 8DPSK
Video Specifications
HDMI ARC (Audio Return Channel)
1
HDMI HDCP version
1.4
What's in The Box
Soundbar
Remote control with batteries
Power cables (up to 4pcs depending on region SKUs)
HDMI cable
Wall-mount bracket kit with screws
Quick start guide
Warranty card
Safety sheet
SKU | OH2300 |
---|---|
Order Lead Time | From 6 January 2025 |
Product Availability | Online Only |
