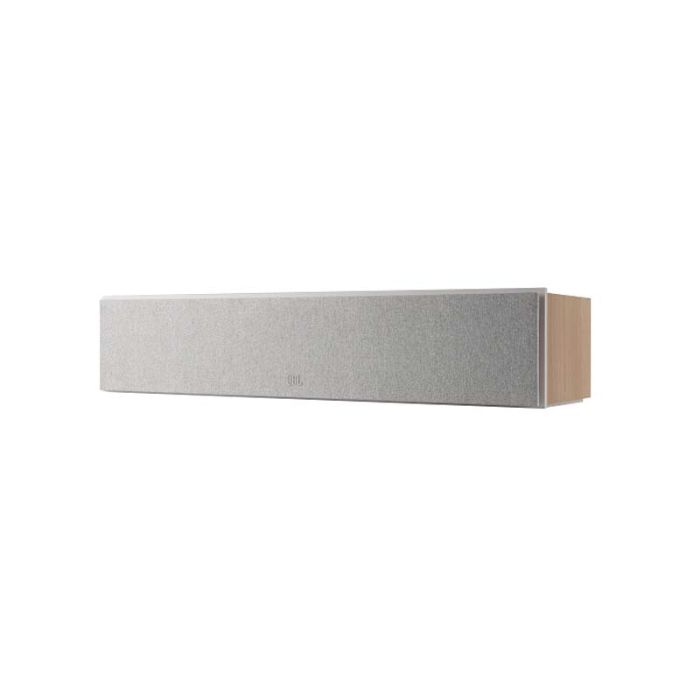

JBL 245C 2.5-Way Quad 4.5-inch Single Centre Channel Speaker - White
JBL 245C 2.5-Way Quad 4.5-inch Single Centre Channel Speaker
Quad 4.5-inch (114mm) Polycellulose Ribbed Cone Woofers
Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.
1-inch (25mm) Anodized Aluminum Tweeter in a Next Generation HDI™ Waveguide
Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity, reduced diffraction, and an overall neutral frequency response both on and off axis. The Stage 2 HDI Horn is coupled to an anodized aluminum dome tweeter to enhance efficiency and dynamics.
Precision 2.5-Way Crossover
The 245C center channel model features a unique two and a half-way crossover design. This unique design crosses over the top woofer right below the tweeter’s output, while the other woofer is crossed over at a lower frequency. This creates a dynamic mid-range but both woofers still extend as deep as they can go for powerful bass. This produces cohesive balanced output with a robust low end that can be both heard and felt.
Specifications
Type
Center Channel Loudspeaker System
Low Frequency Driver
Quad 4.5-inch (114mm) Polycellulose Ribbed Cone
High Frequency Driver
1-inch (25mm) Anodized Aluminum
Waveguide
Next Generation HDI™
Recommended Amplifier Power
20-150W
Frequency Response ± 6dB
55Hz-25kHz
Sensitivity @ 1M, 2.83V
91dB
Nominal Impedance
6 Ohms
Crossover Frequencies
1.3kHz/2.0Khz
Enclosure Tuning
Bass Reflex via Dual Rear-Firing Tuned Ports
Finish
Espresso or Latte
Dimensions
Dimensions (HxWxD)
10.7in x 6.9in x 8.5in (272mm x 175mm x 217mm)
Product Weight
26.4lbs. (12.0kg)
Shipping Weight
32.4lbs. (14.7kg)
Shipping Units of Measure
Each
What's in The Box
1x 245C
6x Anti-Slip Pads
1x Speaker Grille
1x Safety Sheet
1x Quick-Start Guide
| SKU | CON000400 |
|---|---|
| Order Lead Time | 2 - 4 Working Days |
| Product Availability | Online Only |
