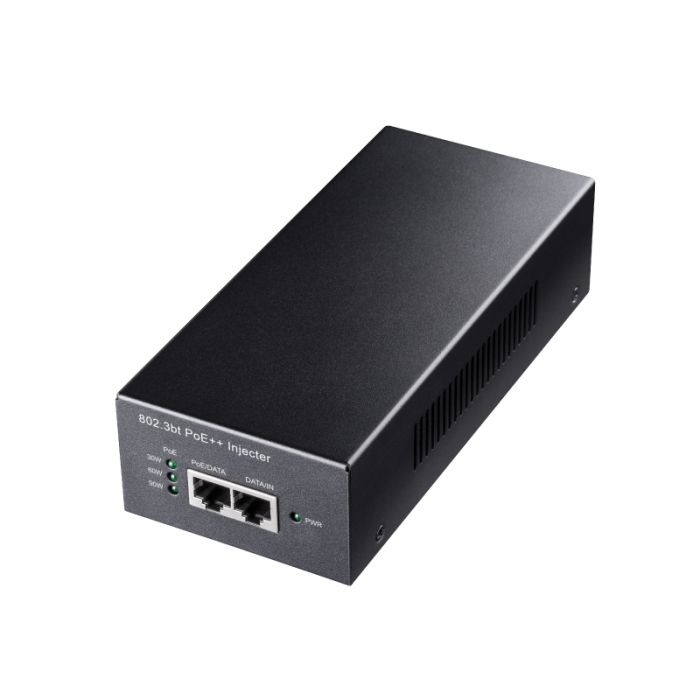

Cudy 90W Gigabit PoE+ Injector
Cudy 90W Gigabit PoE+ Injector
The Cudy POE400 90W Gigabit PoE/PoE+/PoE++ Injector is a great way to provide power over ethernet to all your compatible network and IP devices. It works well with various devices including IP cameras for home, office and small businesses, VOIP phones for business conferences, and WiFi Access Points for office and business. The POE400 is very versatile and can be easily mounted on the wall.
FEATURES:
Full IEEE 802.3af IEEE 802.3at, IEEE802.3bt Compliant
Up to 90W of Power on 4-pairs
Auto-detect of POE IEEE 802.3af IEEE 802.3at, IEEE802.3bt equipment
Supports 10/100/1000Base-T applications
LED indicators power input indication
Distance up to 100 meters
Internal AC/DC converter – no need for external power modules
Easy plug-and-play installation
Surge protection
SPECIFICATIONS:
No. of channels: 1
Pass-Through Data Rates: 10/100/1000Mbps
Power over Ethernet Output:
Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-),
Output Power Voltage: 56Vdc
User Port Power: 90W
Input Power Requirements:
AC Input Voltage: 100 to 240 VAC
AC Input Current: 1A 100-240 VAC
AC Frequency: 50 to 60 Hz
Indicators:
System Indicator: AC Power
User Indicator: Channel Power
Connectors: Shielded RJ-45, EIA 568A and 568B
Protection:
Over-current protection
Over-load protection
Over-voltage protection
Anti-interference protection
Regulatory Compliance:
IEEE 802.3af (15.4W)
IEEE 802.3at (30W)
IEEE802.3bt (90W)
Environmental Conditions
Operating Ambient Temperature:0 to 45℃
Operating Humidity: Maximum 80%, Non-condensing
Storage Temperature:-20 to 70℃
Storage Humidity: Maximum 80%, Non-condensing
Product Dimensions: 17.8 x 8 x 4.6 cm
WHAT'S IN THE BOX:
Cudy POE400 90W Gigabit PoE/PoE+/PoE++ Injector - Black x1
| SKU | POE400 |
|---|---|
| Order Lead Time | 1 - 2 Working Days |
| Product Availability | Online Only |
