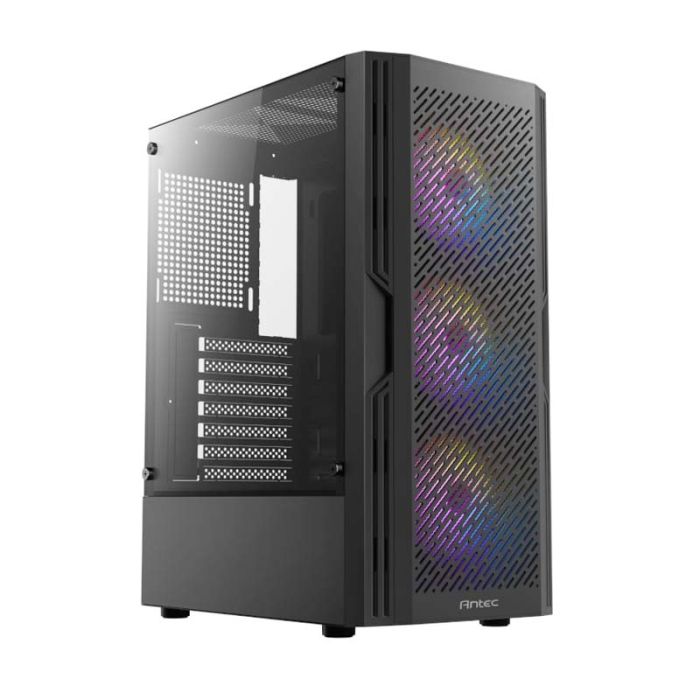

Antec AX20 ATX RGB Mid-Tower Gaming Chassis - Black
Antec AX20 ATX RGB Mid-Tower Gaming Chassis
The Antec AX20 is a stunning combination of innovative design and tremendous cooling capabilities. The Antec AX20 is built to achieve great heat dissipation, ensuring your system stays cool under any workload, thanks to its slanted bar air intake design and dense mesh structure.
The half-view tempered glass side panel provides a touch of class, allowing you to proudly display your gaming setup without any obstructions. The AX20 is designed for versatility, since it can take up to 8 x 120mm fans at the same time, providing a wide range of cooling solutions to fit your needs.
With the Antec AX20’s dense mesh structure, you can unleash a torrent of airflow while successfully minimising dust buildup and maximising cooling performance. Massive air intakes strategically placed in the front, top, and bottom generate different airflow routes, promoting a constant supply of fresh air throughout your system.
Features:
High-Airflow and Ventilation
Tempered Side Glass Panel
Slanted Bar Air Intake Design
3x 120mm RGB Front Fans
Powerful Heat Dissipation
ATX Motherboard Support
Specifications:
Form Factor: Mid Tower
Materials: Steel + Plastic
Mainboard Support: ATX, Micro-ATX, ITX
Front Access & Controls: Power, Reset, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , MIC / HD-AUDIO
Side Panel: 4mm Tempered glass
Drive Bays: Expansion Slots: 7, 3.5″ /2.5″ – 2 / 1, 2.5″- 2
Fan Support:
Front: 3 x 120mm / 3 x 140mm
Top: 3 x 120mm / 2 x 140mm
Rear: 1 x 120mm
Side:
Power Supply Shroud: 2 x 120mm
Rear: 1 x 120mm
Included Fan(s): 3 x 120 RGB fixed model fans in front
Radiator Support:
Front: 120/140/240/360mm
Clearance:
Max GPU Length: ≤ 270mm
Max CPU Cooler Height: ≤ 155mm
Max PSU Length: ≤ 170mm(with HDD), ≤ 295mm(without HDD)
Product Dimensions: 35.8 x 21 x 45.2 cm
Product Weight: 4000g
What's in the box:
Antec AX20 ATX RGB Mid-Tower Gaming Chassis – Black x1
| SKU | AX20 |
|---|---|
| Order Lead Time | From 6 January 2025 |
| Product Availability | Online Only |
